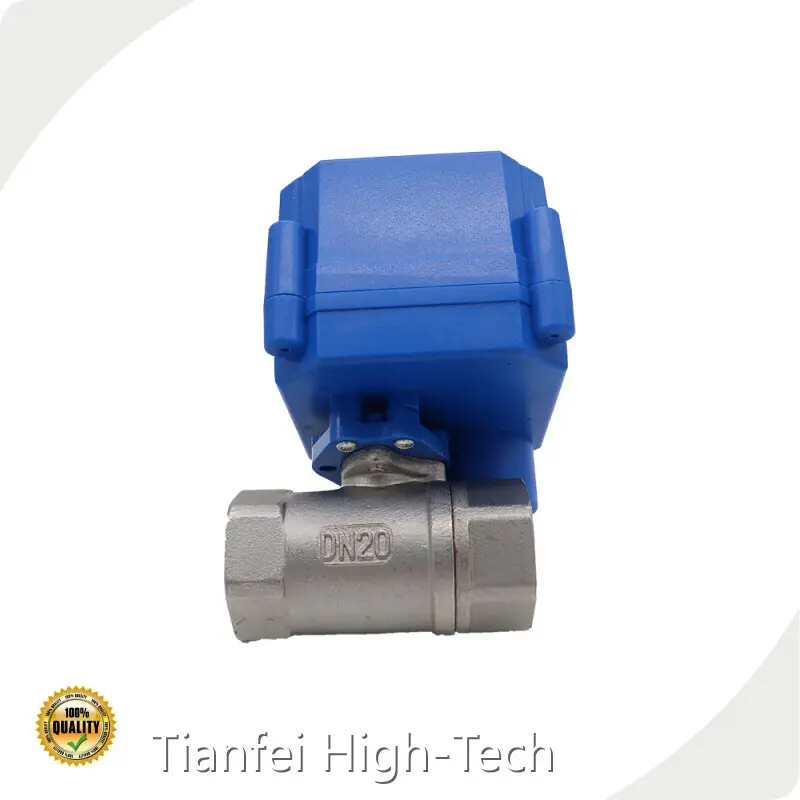

Product details of the motorized valve
Product Introduction
The Tianfei High-Tech motorized valve is produced using quality raw materials and smart technology. Its quality is seriously taken into account from material purchase to package. Our quality for motorized valve is deeply trusted by customers and you can be assured of it.
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
Gold quality
strict quality assurance
Independent research, development, production and sales, with a number of patent certificates
20 years of establishment of the factory, strong strength, credibility first
Products are certified by professional organizations, quality assurance
Factory direct selling, support customization, buy the whole process of installation technical support
1.Connecting Sw and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2.Connecting Sw and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
1.Connecting Sw to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position 2.Connection sw to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed) Note : AC24V/AC220V can only be used for CWX-50K series
electric valves
1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal 2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position 2.SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position
1.Connecting SW to OPEN, the valve opens , getting the position and automatically power off, the valve remain fully open position 2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically power off, the valve remains side passes position(ully closed) Note : As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe
1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note : Please make sure the signal wires "red"," black" and " green" be connected at first, then contact with the power wires " yellow" and "blue"
1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal 2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
1. Connecting SW and OPEN,the valve opens,getting the position,automatically power off,the valve remains fully open position. 2. Connecting SW and CLOSE,the valve close,getting the position,automatically power off,the valve remains fully close position.
1.SW1 open, SW2 open, valve full close, getting the position valve remain fully close position 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position 4.SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio
Company Advantage
• With the convenient highway access around our company and the great geographic location, ourmotorized valve,intelligent valve is provided with convenient transportation.
• Our company's products are sold in major cities in China. Moreover, they are also exported to many overseas countries and regions.
• Tianfei High-Tech has advanced technology, sophisticated equipment and perfect testing system. We are able to provide efficient and one-stop custom service.
• Over the past years, Tianfei High-Tech has always striven for steady, rapid and remarkable development since the establishment. At present, the valve production technology is close to the international level. We build a good corporate image in the industry.
• Our company has introduced an advanced management model and excellent management philosophy, and built a strong and professional management team.
Hello, if you are interested in Tianfei High-Tech's products, feel free to contact us directly. Don't hesitate, just call us!
