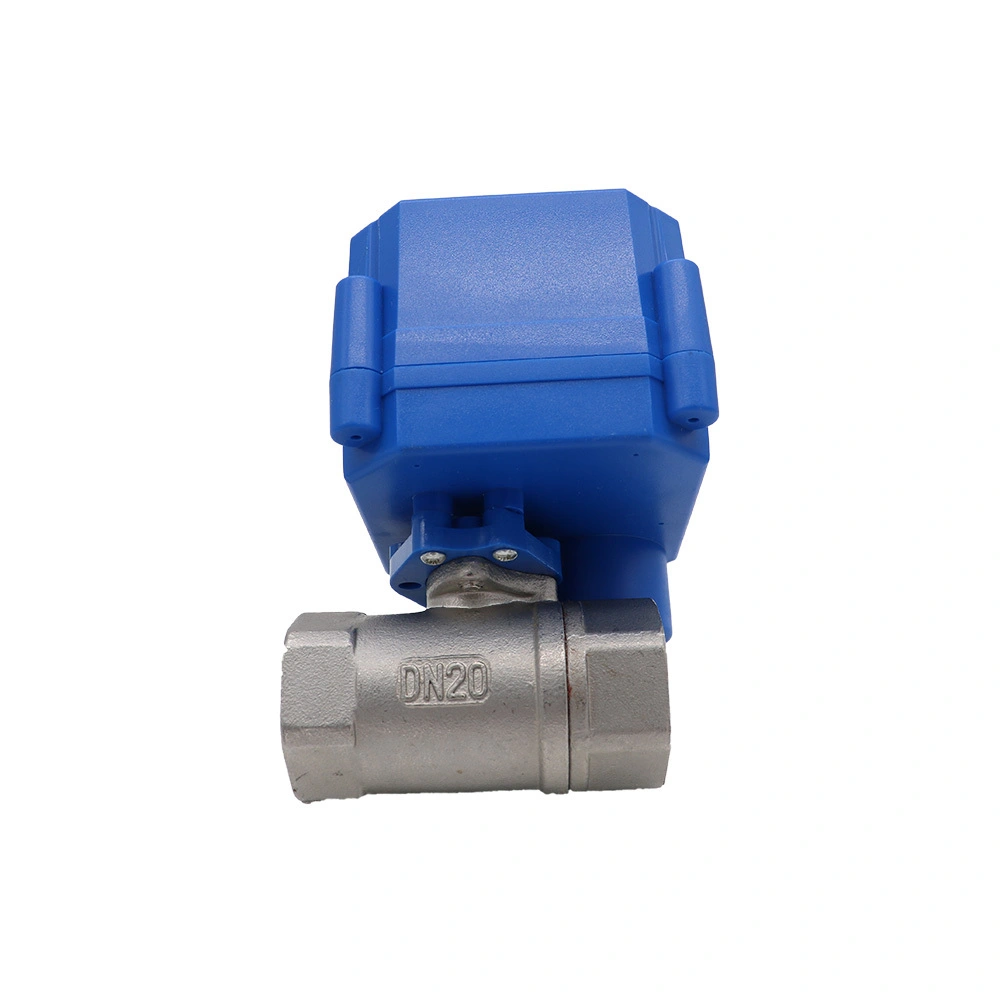

25S Mini Electric/Motorized ball valve
Feature:
1. POM material gear box
2. Manual Override, the valve can be operated when power failure
3. Min dimension and position indicator
4. Good sealing performance, IP65 enclosure
Application:
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
Gold quality
strict quality assurance
Industry experience
Independent research, development, production and sales, with a number of patent certificates
Market area
20 years of establishment of the factory, strong strength, credibility first
Team introduction
Products are certified by professional organizations, quality assurance
Product advantages
Factory direct selling, support customization, buy the whole process of installation technical support
Product fittings
IMG_0074
IMG_0075
IMG_7859
IMG_7860
IMG_7862
IMG_7919
Product direct view
1 (6)
2 (5)
Wiring diagram
CR01
1.Connecting Sw and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position.
2.Connecting Sw and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
2.Connecting Sw and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
CR02
1.Connecting Sw to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position
2.Connection sw to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)
Note : AC24V/AC220V can only be used for CWX-50K series electric valves
2.Connection sw to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)
Note : AC24V/AC220V can only be used for CWX-50K series electric valves
CR03A
1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal
2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
CR04
1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position
2.SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position
2.SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position
CR02+
1.Connecting SW to OPEN, the valve opens , getting the position and automatically power off, the valve remain fully open position
2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically power off, the valve remains side passes position(ully closed)
Note : As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe
2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically power off, the valve remains side passes position(ully closed)
Note : As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe
CR05
1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
Note : Please make sure the signal wires "red"," black" and " green" be connected at first, then contact with the power wires " yellow" and "blue"
2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
Note : Please make sure the signal wires "red"," black" and " green" be connected at first, then contact with the power wires " yellow" and "blue"
CR03A
1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal
2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal
CR06
1. Connecting SW and OPEN,the valve opens,getting the position,automatically power off,the valve remains fully open position.
2. Connecting SW and CLOSE,the valve close,getting the position,automatically power off,the valve remains fully close position.
2. Connecting SW and CLOSE,the valve close,getting the position,automatically power off,the valve remains fully close position.
CR03T
1.SW1 open, SW2 open, valve full close, getting the position valve remain fully close position
2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position
3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position
4.SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio
2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position
3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position
4.SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio
Basic parameters
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Dimensional table
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode | Working pressure | Power | Medium temperature | Size | IP Garde | Special function |
| CWX-25S | DC3-6V DC12V A/DC9-24V AC220V AC85-265V |
Max80mA | Max2.5NM | ＜8s | CR01 CR02 CR03 CR04 CR05 | Max1.0Mpa | <2W | 0-90℃ | DN8-32 Two-way DN8-20 Three-way | IP65 | Wireless switch control (within 200 meters) |
