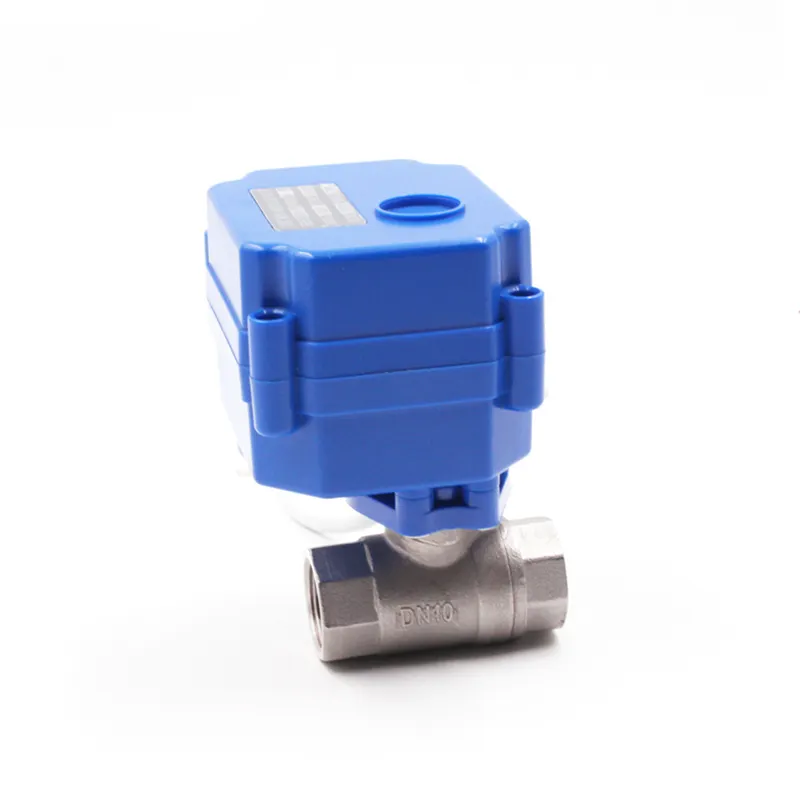

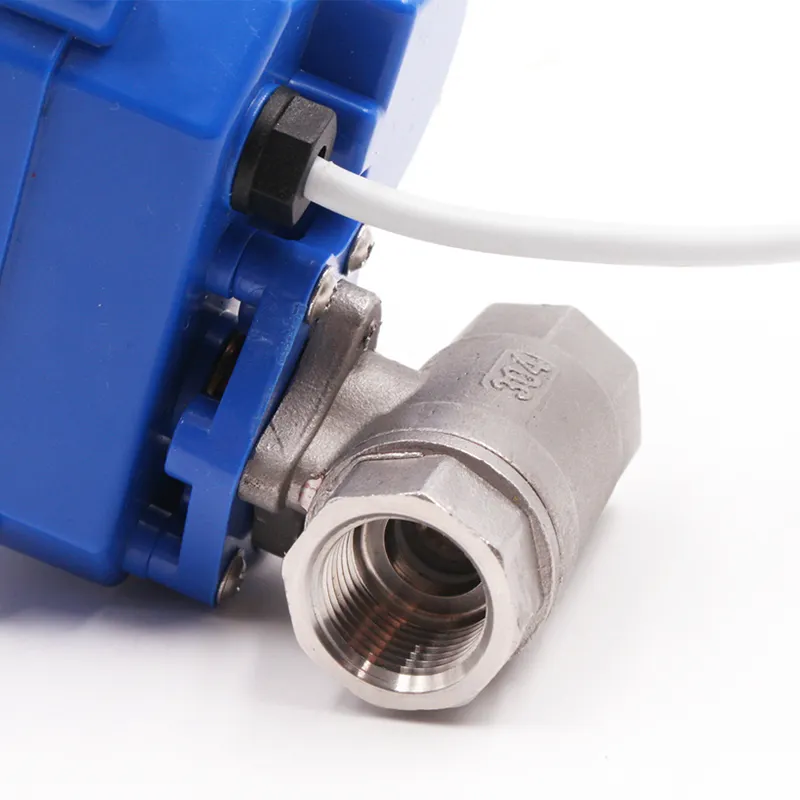

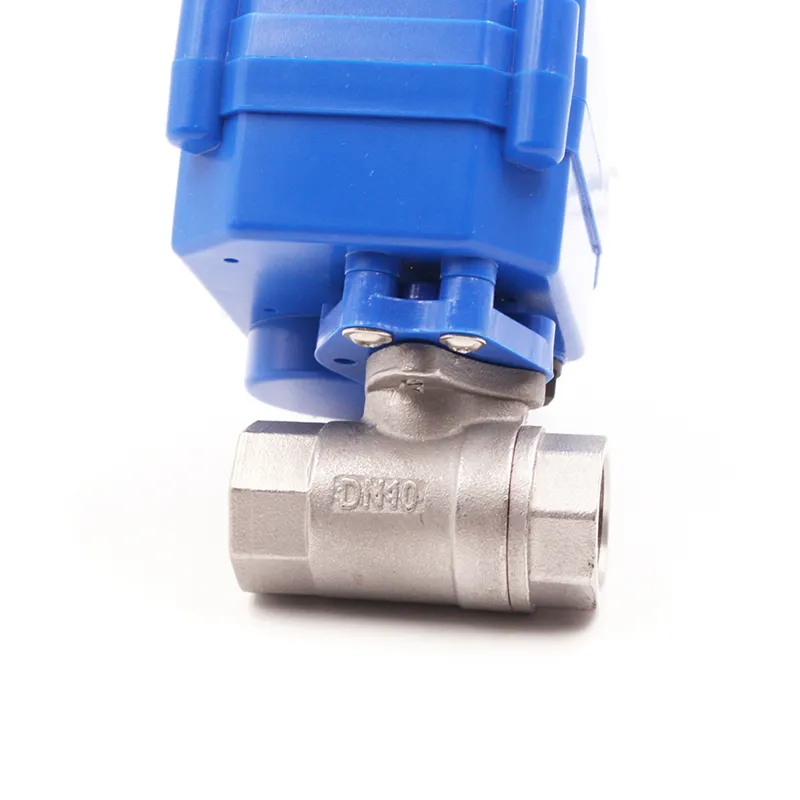

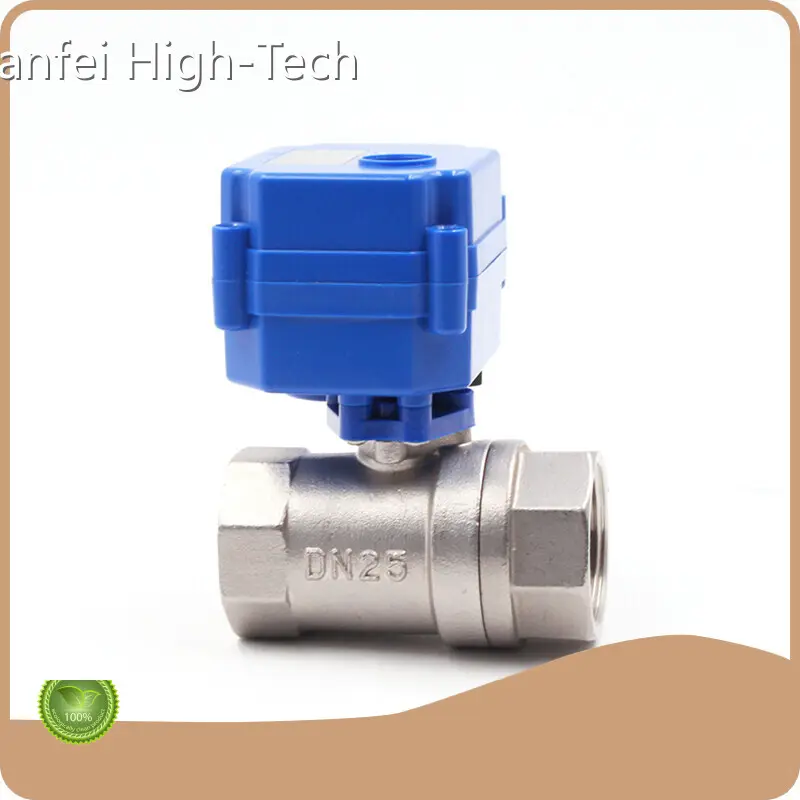

Product details of the motorized ball valve with timer
Product Overview
Tianfei High-Tech fully considers the complexity of working conditions and boldly innovates and optimizes the product structure. motorized valve,intelligent valve have good design as well as excellent performance. They are available with dense sealing face, anti corrosion and long service life. High standard and high quality design concept is on motorized ball valve with timer. The product has a high cost performance for its strong functionality and high performance. Our strict QC and management system can ensure high quality of motorized ball valve with timer.
Product Information
After improvement, the motorized ball valve with timer produced by Tianfei High-Tech is more brilliant in the following aspects.
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
Gold quality
strict quality assurance
Independent research, development, production and sales, with a number of patent certificates
20 years of establishment of the factory, strong strength, credibility first
Products are certified by professional organizations, quality assurance
Factory direct selling, support customization, buy the whole process of installation technical support
1. Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2. Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position. 2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed). Note : AC24V/AC220V can only be used for CWX-50K series
electric valves.
1. Connecting SW to OPEN, the valve opens . getting the position and automatically power off, the valve remain fully open position. 2.Disconnecting SW to CLOSE, the valve close，getting the position and automatically power off, the valve remains side passes position(fully closed). Note: As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe.
1. Connecting SW, the valve opens, getting the position ,automatically power off, the valve remain fully open position. 3.Disconnecting SW, the valve close,getting the position ,automatically power off, the valve remains side passes position(fully closed). Note: When power is DC voltage and Red Wires is"+",Blue wire is"—".
1. Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal.
2.1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position. 2. SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position.
1. Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2. Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note: Please make sure the signal wires "red",' black" and " green" be connected at first, then contact with the power wires " yellow" and " blue".
1. SW1 open, SW2 open, valve full close, getting the position valve remain fully close position. 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position. 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position. SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio.
Company Introduction
Tianjin Tianfei High-Tech Valve Co., Ltd. is a enterprise that integrates production and sales of products. The main products are motorized valve,intelligent valve. Staying ahead of the times, Tianfei High-Tech focuses on the new trend and puts the plan into practice. With tenacious efforts, we launched our own brand called Tianfei High-Tech in the highly competitive market. Tianfei High-Tech has professional personnel to provide corresponding services for customers to solve their problems. Tianfei High-Tech focuses on the quality and sincerity-based business. We gather a group of excellent design talents and efficient production technicians. We could design and manufacture high-quality motorized valve,intelligent valve in a short period of time. We are capable of providing one-stop custom service.
Dear customer, if you want to know more about details of various motorized valve,intelligent valve, please leave your contact information. Tianfei High-Tech will send you relevant information.
