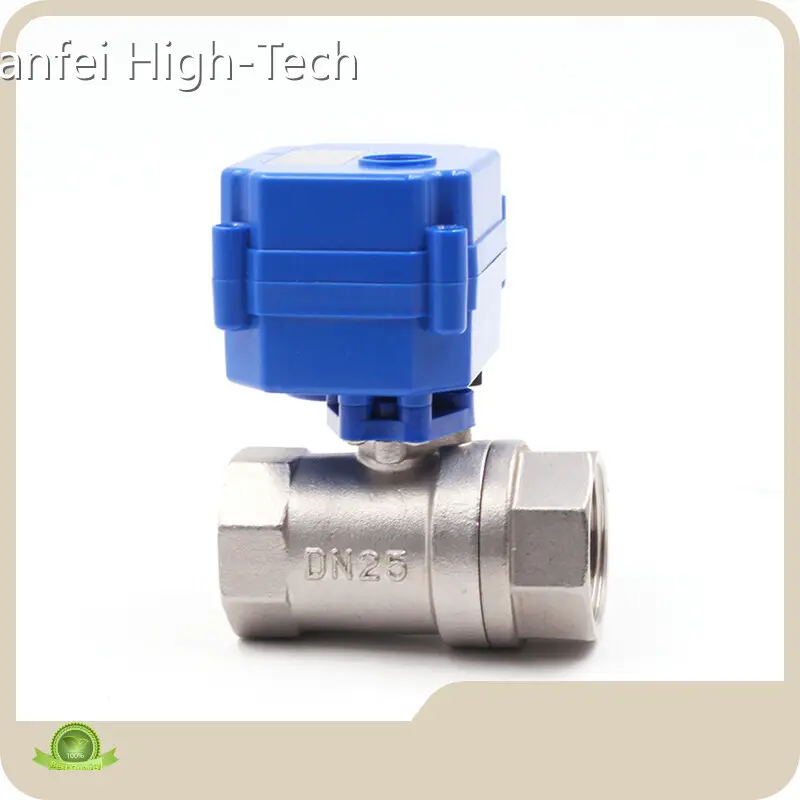

Product details of the motorized ball valve
Quick Detail
motorized ball valve from Tianjin Tianfei High-Tech Valve Co., Ltd. must be built in fine, exquisite and motorized ball valve. The product has been certified to a number of recognized standards, such as ISO quality standards. motorized ball valve of Tianfei High-Tech can play a role in various industries. This Tianfei High-Tech branded product has been recognized and supported by customers at home and abroad.
Product Description
Tianfei High-Tech's technical level is higher than its peers. Compared with peer products, the motorized ball valve produced by us has the following highlights.
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
Gold quality
strict quality assurance
Independent research, development, production and sales, with a number of patent certificates
20 years of establishment of the factory, strong strength, credibility first
Products are certified by professional organizations, quality assurance
Factory direct selling, support customization, buy the whole process of installation technical support
1. Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2. Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position. 2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed). Note : AC24V/AC220V can only be used for CWX-50K series
electric valves.
1. Connecting SW to OPEN, the valve opens . getting the position and automatically power off, the valve remain fully open position. 2.Disconnecting SW to CLOSE, the valve close，getting the position and automatically power off, the valve remains side passes position(fully closed). Note: As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe.
1. Connecting SW, the valve opens, getting the position ,automatically power off, the valve remain fully open position. 3.Disconnecting SW, the valve close,getting the position ,automatically power off, the valve remains side passes position(fully closed). Note: When power is DC voltage and Red Wires is"+",Blue wire is"—".
1. Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal.
2.1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position. 2. SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position.
1. Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2. Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note: Please make sure the signal wires "red",' black" and " green" be connected at first, then contact with the power wires " yellow" and " blue".
1. SW1 open, SW2 open, valve full close, getting the position valve remain fully close position. 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position. 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position. SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio.
Company Introduction
As a large producer of motorized ball valve, Tianjin Tianfei High-Tech Valve Co., Ltd. is one of the very best in China. Our company has excellent sales and marketing people. They are experienced extroverts. They speak many languages, are always easy to reach and have years of experience in the motorized ball valve industry. At the core of our company are our employees and values. We encourage our valued, talented team to be driven to our company goals based on Quality, Delivery, and Service.
Welcome to Tianfei High-Tech. Leave your contact information for quotation and discount!
