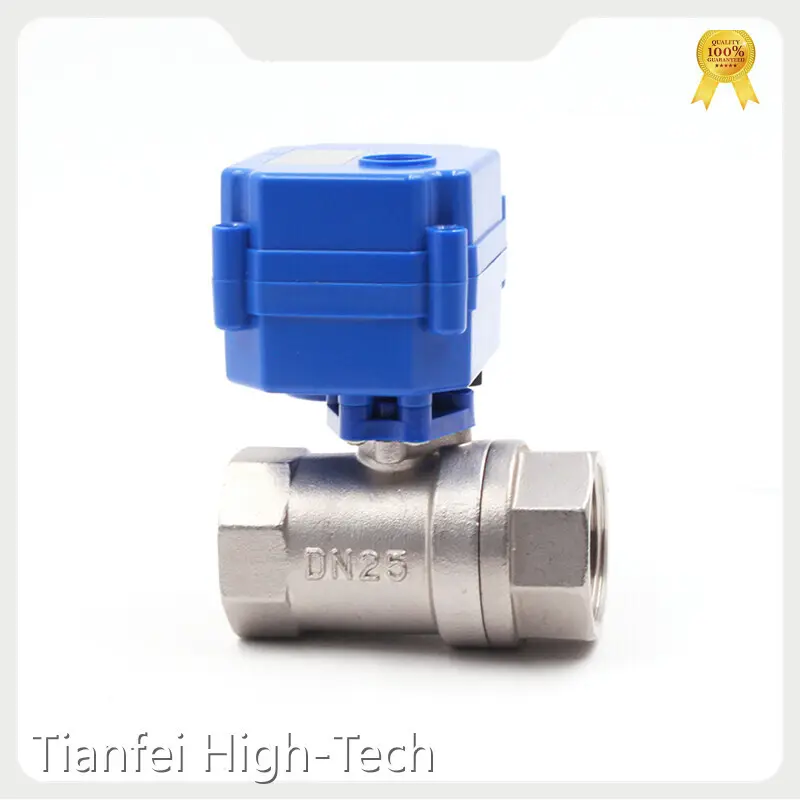

Hotmotorized Ball Valve 24v Tianfei High-Tech Brand

Application

1. Heat energy meters, fire work, save water system

2. Auto control system, industrial mini auto control equipment

3. Water saving equipment, drinking water equipment

4. Air-conditioning fan coin(HVAC)

Gold quality

strict quality assurance

Industry experience

Independent research, development, production and sales, with a number of patent certificates

Market area

20 years of establishment of the factory, strong strength, credibility first

Team introduction

Products are certified by professional organizations, quality assurance

Product advantages

Factory direct selling, support customization, buy the whole process of installation technical support

Product fittings

1 (3)

2 (2)

3 (2)

4 (3)

5 (2)

6 (3)

Product direct view

未标题-2 (2)

未标题-3 (3)

Wiring diagram

CR01

1. Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2. Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.

CR02

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position. 2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed). Note : AC24V/AC220V can only be used for CWX-50K series electric valves.

CR02+

1. Connecting SW to OPEN, the valve opens . getting the position and automatically power off, the valve remain fully open position. 2.Disconnecting SW to CLOSE, the valve close，getting the position and automatically power off, the valve remains side passes position(fully closed). Note: As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe.

CR03

1. Connecting SW, the valve opens, getting the position ,automatically power off, the valve remain fully open position. 3.Disconnecting SW, the valve close,getting the position ,automatically power off, the valve remains side passes position(fully closed). Note: When power is DC voltage and Red Wires is"+",Blue wire is"—".

CR03A

1. Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal.

CR04

2.1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position. 2. SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position.

CR05

1. Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2. Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note: Please make sure the signal wires "red",' black" and " green" be connected at first, then contact with the power wires " yellow" and " blue".

CR03T

1. SW1 open, SW2 open, valve full close, getting the position valve remain fully close position. 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position. 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position. SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio.

Company Advantages

· Tianfei High-Tech motorized ball valve 24v is precisely manufactured in accordance with industry set norms.

· The product is handled with the utmost quality and expertise.

· This product keeps up with the industry trends and meets the different requirements of customers.

Company Features

· Tianjin Tianfei High-Tech Valve Co., Ltd. has successfully established its own brand in the field of motorized ball valve 24v.

· With immense market knowledge, we have been able to provide optimum quality motorized ball valve 24v to the exact demand of customers.

· Tianjin Tianfei High-Tech Valve Co., Ltd. always clings to long-term development by providing customers with superior motorized ball valve 24v. Get more info!

Application of the Product

Tianfei High-Tech's motorized ball valve 24v can meet the different needs of customers.

Tianfei High-Tech is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
