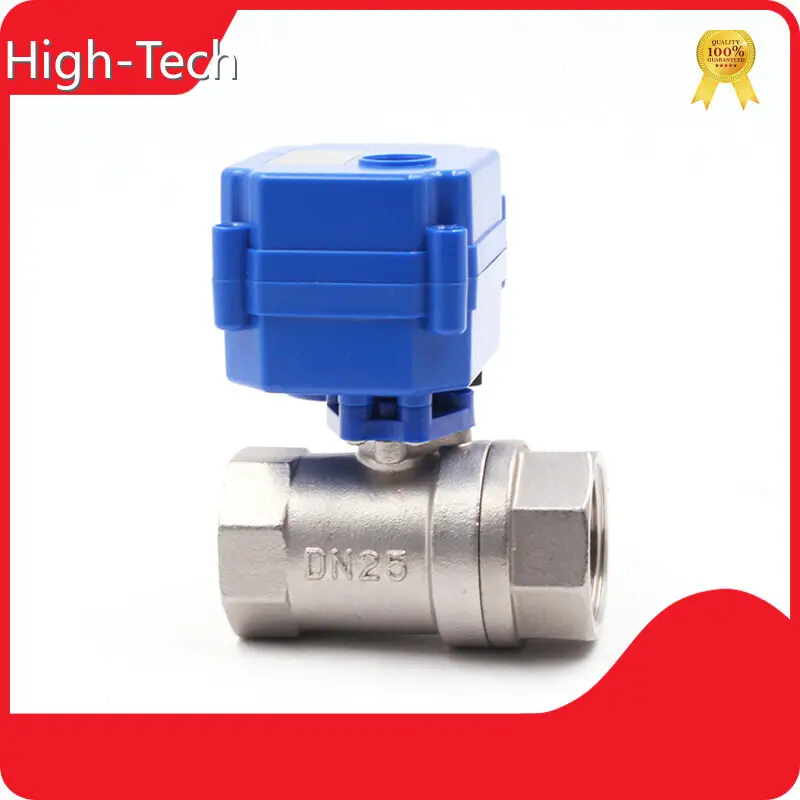

Product details of the mini motorized ball valve
Product Overview
Based on the design of different actuation systems, Tianfei High-Tech's motorized valve,intelligent valve make the production more labour-saving and efficient. Besides, we improve the safety performance and function by using safe and eco-friendly materials. They are not easy to leak and explode and are more resistant to wear and corrosion. Compared with products in the same category, they can be used for a longer time. Every part of Tianfei High-Tech mini motorized ball valve is individually checked before assembly. The product is of the highest levels of safety and quality. Tianfei High-Tech is a specialized company devoted to introducing advanced international technologies and equipment.
Product Introduction
Compared with similar products, our mini motorized ball valve is provided with the following competitive advantages.
1. Heat energy meters, fire work, save water system
2. Auto control system, industrial mini auto control equipment
3. Water saving equipment, drinking water equipment
4. Air-conditioning fan coin(HVAC)
Gold quality
strict quality assurance
Independent research, development, production and sales, with a number of patent certificates
20 years of establishment of the factory, strong strength, credibility first
Products are certified by professional organizations, quality assurance
Factory direct selling, support customization, buy the whole process of installation technical support
1. Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2. Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.
1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position. 2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed). Note : AC24V/AC220V can only be used for CWX-50K series
electric valves.
1. Connecting SW to OPEN, the valve opens . getting the position and automatically power off, the valve remain fully open position. 2.Disconnecting SW to CLOSE, the valve close，getting the position and automatically power off, the valve remains side passes position(fully closed). Note: As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe.
1. Connecting SW, the valve opens, getting the position ,automatically power off, the valve remain fully open position. 3.Disconnecting SW, the valve close,getting the position ,automatically power off, the valve remains side passes position(fully closed). Note: When power is DC voltage and Red Wires is"+",Blue wire is"—".
1. Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal.
2.1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position. 2. SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position.
1. Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2. Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note: Please make sure the signal wires "red",' black" and " green" be connected at first, then contact with the power wires " yellow" and " blue".
1. SW1 open, SW2 open, valve full close, getting the position valve remain fully close position. 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position. 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position. SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio.
Company Information
Tianjin Tianfei High-Tech Valve Co., Ltd. is one of the world’s leading producers of mini motorized ball valve. We boast a high-efficient project management team. Based on their years of understanding of the mini motorized ball valve industry, they work together to help us cut costs, increase productivity, improve quality, decrease lead times, and reduce waste. Tianjin Tianfei High-Tech Valve Co., Ltd. invests heavily in basic research, concentrating on technological breakthroughs that drive the world forward. Check now!
Tianfei High-Tech knows your thoughts and needs. If you have any questions, feel free to contact us!
