Custom Motorized Ball Valve 24v Tianfei High-Tech

Product details of the motorized ball valve 24v

Product Description

Tianfei High-Tech motorized ball valve 24v is manufactured from top quality materials internationally sourced from quality and reliable suppliers. The product is featured by the first - class quality and stable performance. This product has won praises from customers all over the world and has great market application potential.

Application

1. University LABS, automotive laboratories;

2. Drug production, diesel fuel saving, etc.;

3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities;

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works;

5. Water-saving appliances, drinking water equipment, etc.

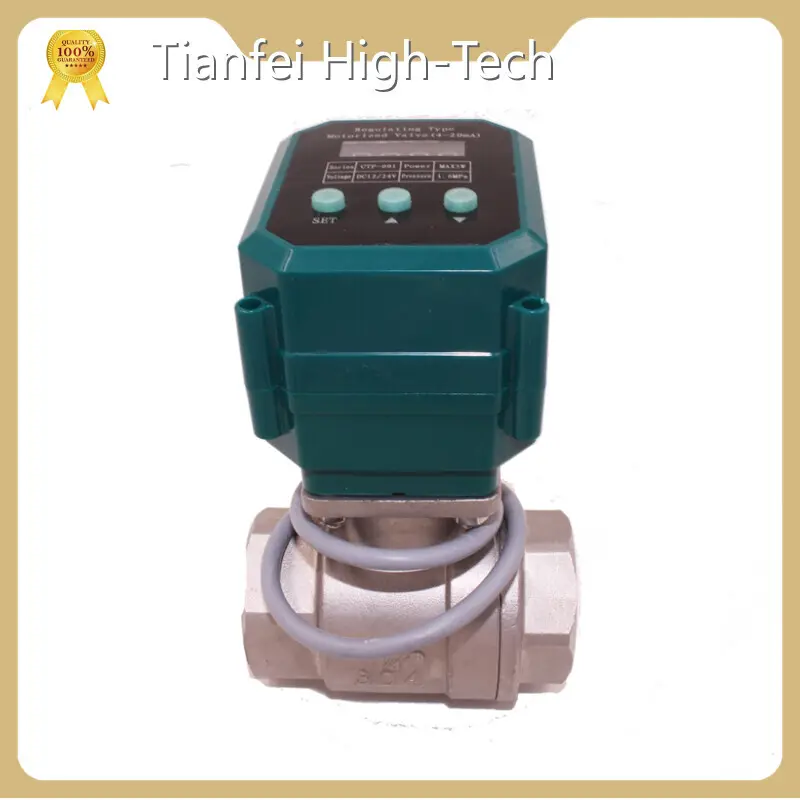

Product display

IMG_8206

IMG_8214

IMG_8217

Shape Diagram

Wiring diagram

Instructions for High performance industrial computer kernel, large torque output, can drive dn8-dn32 calibre ball valve;

Input 4~20mA control, feedback 4-20ma signal;

Control accuracy: 0.5%~1%;

Electric actuators have two kinds of working status: automatic state (input signal control switch), manual state (key control switch);

1. In manual mode, no operation for 30 seconds, automatic return to automatic mode, receiving input 4~20mA signal control;

2. When the input signal is broken, or the signal is lower than 3mA (the standard is the lowest, normal is 4mA), the warning of "OFF" is displayed;

3. Automatically eliminate the input signal of the input signal below 4mA or greater than 20mA due to abnormal reason to stop the valve operation;

4. In the automatic state, you can check the input signal size at any time (in the form of percentages, such as 12mA display is 50%), so as to facilitate on-site debugging;

5. Press the button 1 to switch "automatic/manual" mode, and the opening displays the flicker when the representative switches to manual mode, which can be manually adjusted;Once again press the button 1, the opening display stop flicker, switch to automatic mode;

6. In manual mode, press the button 2 to open the valve, release the key or open the position valve to stop automatically;

7. In manual mode, press the button 3 to close the valve, release the button or close the valve to stop automatically.

Company Advantage

• Over the past years, Tianfei High-Tech has always striven for steady, rapid and remarkable development since the establishment. At present, the valve production technology is close to the international level. We build a good corporate image in the industry.
• Tianfei High-Tech has a sales network covering the whole country. Some products are exported to America, Africa, Europe, and other countries and regions. Now we are an influential company in the industry.
• Tianfei High-Tech has a professional R&D and design team as well as a production and processing team. Our team members are highly innovative and are dedicated to making contribution to our company regardless of all the difficulties. With the profession and spirit, we could provide professional custom service.
• Tianfei High-Tech's goal is to sincerely provide consumers with quality products as well as professional and thoughtful services.
• Superior geographical location, traffic convenience, and developed communication create a good external environment for Tianfei High-Tech's development.
Tianfei High-Tech is a professional manufacturer of motorized valve,intelligent valve. Your inquiry and cooperation are welcome.
