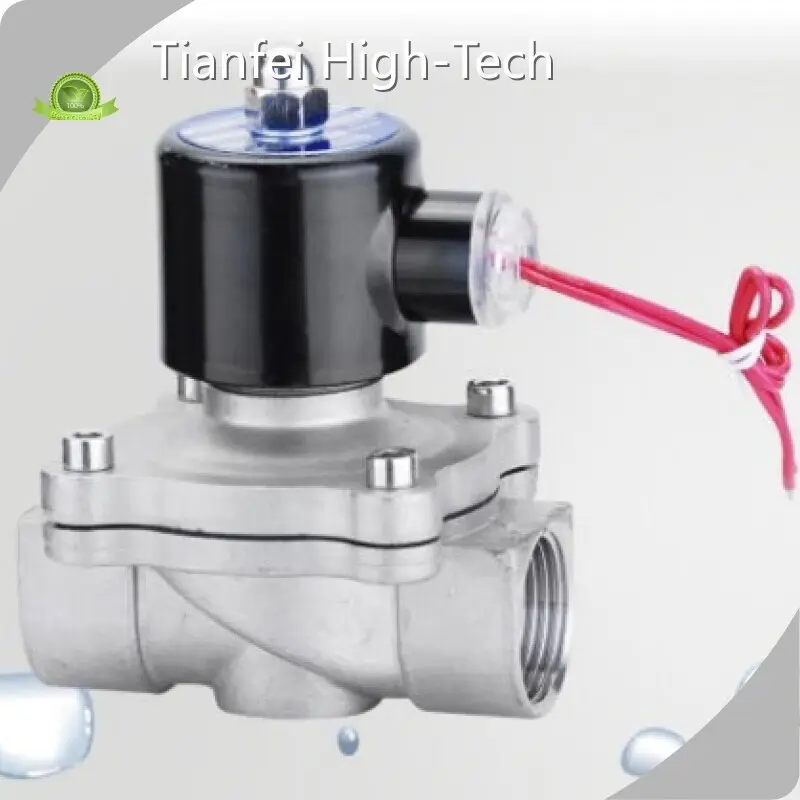

Tianfei High-Tech pays attention to the introduction of foreign advanced valve design and manufacturing technology. After the large-scale technical transformation, we improve the technology and quality. motorized valve,intelligent valve are safe, eco-friendly and durable and are of good sealing and easy operation. The production of Tianfei High-Tech custom valve is of high efficiency with the help of advanced production equipment. As a result of the effort, this product meets the strictest performance criteria. Known for these features, this product is highly appreciated among clients.

Product Description

Compared with similar products, Tianfei High-Tech's custom valve has the following advantages.

The internal structure of outline dimension drawing

2 (10)

3 (8)

1 (14)

Technical parameters

Unit: mm

Model no	A	B	C
2W-160-10B	69	57	107
2W-160-15B .	69	57	107
2W-200-20B	73	57	115
2W-250-25B	98	77	125
2W-320-32B	115	87	153
2W-400-40B	121	94	162
2W-500-50B	168	123	187

Structure parameters

Model NO.	2W-160-10B	2W-160-15B	2W-200-20B	2W-250-25B	2W-320-32B	2W-400-40B	2W-500-50B
Pipe Size	3/8"	1/2"	3/4"	1"	11/4”	11/2"	2”
Orifice size	16mm	16mm	20mm	25mm	32mm	40mm	50mm
CV value	4.8	4.8	7.6	12	24	29	48
Fluid	Air water oil,the neutral gasliquid
Service voltage	AC380V AC220V AC110V AC24V DC24V DC12V allow±10%
Operating	direct acting			direct acting	direct acting
Body Material	stainless steel			stainless steel	stainless steel
Working pressure	water,air :0~10kgf/cm² oil:0~7kgf/cm²
Material of seal	standard: below 80℃fluid temperature use NBR, below 120℃use EPDM. VITON resistance to weak acid and weak base or below 150℃

Company Introduction

As a company, Tianjin Tianfei High-Tech Valve Co., Ltd. runs the business including production, processing, marketing and service of motorized valve,intelligent valve. Our company has always adhered to the corporate tenet of 'technological innovation, environmental protection, and faithful management', and achieved good social and economic benefits. Tianfei High-Tech has a core R&D team composed of senior technical talents with strong professional capabilities, which provides a strong guarantee for product development. Tianfei High-Tech always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.
Tianfei High-Tech is a professional manufacturer of motorized valve,intelligent valve. We insist on providing customers with high-quality products of various models and functions. Please contact us if you need it!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
