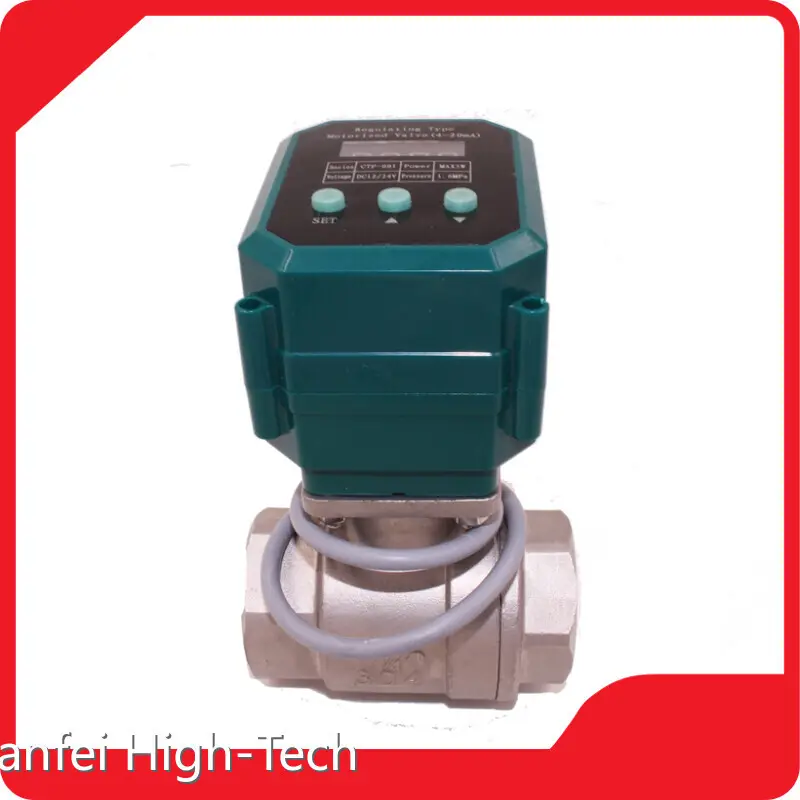

Tianfei High-Tech Brand Stainless Steel Motorized Ball Valve Supplier-1

Product details of the stainless steel motorized ball valve

Product Overview

Tianfei High-Tech stainless steel motorized ball valve has attracting designs with consistency. The product has a longer life, premium quality, and durability. stainless steel motorized ball valve is one of the main products of Tianfei High-Tech. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. Tianjin Tianfei High-Tech Valve Co., Ltd. makes efforts to set an example as a reliable enterprise.

Product Introduction

Compared with similar products, the stainless steel motorized ball valve of Tianfei High-Tech is more strict in the selection of raw materials. The specific aspects are as follows.

Application

1. University LABS, automotive laboratories;

2. Drug production, diesel fuel saving, etc.;

3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities;

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works;

5. Water-saving appliances, drinking water equipment, etc.

Product display

IMG_8206

IMG_8214

IMG_8217

Shape Diagram

Wiring diagram

Instructions for High performance industrial computer kernel, large torque output, can drive dn8-dn32 calibre ball valve;

Input 4~20mA control, feedback 4-20ma signal;

Control accuracy: 0.5%~1%;

Electric actuators have two kinds of working status: automatic state (input signal control switch), manual state (key control switch);

1. In manual mode, no operation for 30 seconds, automatic return to automatic mode, receiving input 4~20mA signal control;

2. When the input signal is broken, or the signal is lower than 3mA (the standard is the lowest, normal is 4mA), the warning of "OFF" is displayed;

3. Automatically eliminate the input signal of the input signal below 4mA or greater than 20mA due to abnormal reason to stop the valve operation;

4. In the automatic state, you can check the input signal size at any time (in the form of percentages, such as 12mA display is 50%), so as to facilitate on-site debugging;

5. Press the button 1 to switch "automatic/manual" mode, and the opening displays the flicker when the representative switches to manual mode, which can be manually adjusted;Once again press the button 1, the opening display stop flicker, switch to automatic mode;

6. In manual mode, press the button 2 to open the valve, release the key or open the position valve to stop automatically;

7. In manual mode, press the button 3 to close the valve, release the button or close the valve to stop automatically.

Company Introduction

Tianjin Tianfei High-Tech Valve Co., Ltd., referred to as Tianfei High-Tech, is a company specializing in the production and sales of motorized valve,intelligent valve. During the development, Tianfei High-Tech accurately grasps the market rules and users' pain point. The brand Tianfei High-Tech is developed based on the clear definition of product's core value. With the highest sincerity and the best attitude, our company strives to provide consumers with satisfactory services in line with their real needs. Tianfei High-Tech provides professional custom service. Based on the great capability of independent innovation, we could design and develop motorized valve,intelligent valve of various types and sizes according to the market demand.
Dear customer, if you want to know more about details of various motorized valve,intelligent valve, please leave your contact information. Tianfei High-Tech will send you relevant information.
