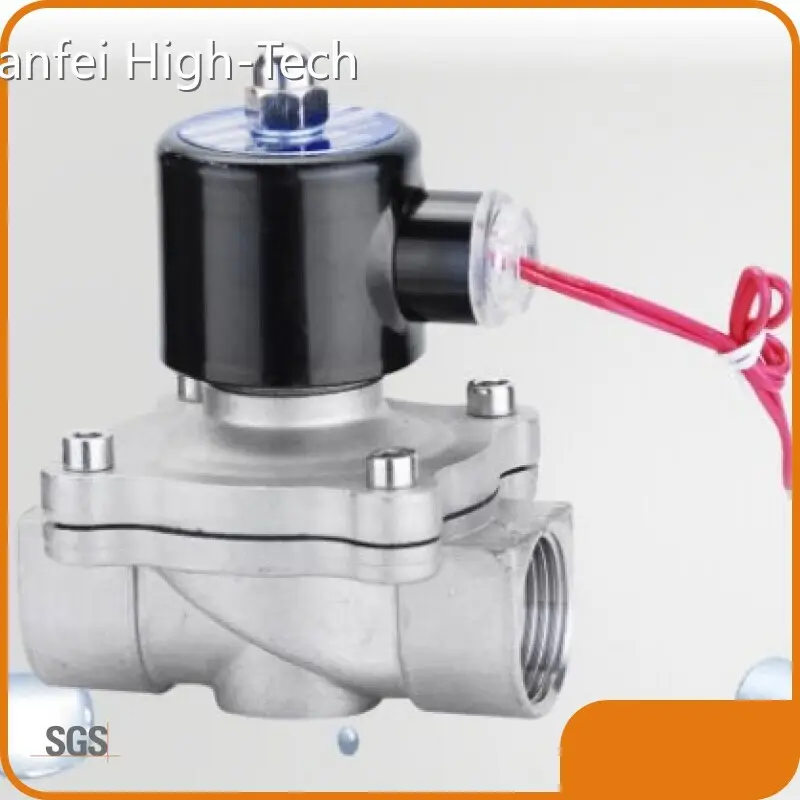

Solenoid Valve Price Tianfei High-Tech Brand
Product details of the solenoid valve price
Product Introduction
solenoid valve price manufacture adheres to the standard process operation. It has great performance superiority compared with other products. The product, available at such a competitive price, is highly demanded by the market.
The internal structure of outline dimension drawing
Technical parameters
Unit: mm
|
Model no |
A |
B |
C |
|
2W-160-10B |
69 |
57 |
107 |
|
2W-160-15B . |
69 |
57 |
107 |
|
2W-200-20B |
73 |
57 |
115 |
|
2W-250-25B |
98 |
77 |
125 |
|
2W-320-32B |
115 |
87 |
153 |
|
2W-400-40B |
121 |
94 |
162 |
|
2W-500-50B |
168 |
123 |
187 |
Structure parameters
|
Model NO. |
2W-160-10B |
2W-160-15B |
2W-200-20B |
2W-250-25B |
2W-320-32B |
2W-400-40B |
2W-500-50B |
|
Pipe Size |
3/8" |
1/2" |
3/4" |
1" |
11/4” |
11/2" |
2” |
|
Orifice size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Fluid |
Air water oil,the neutral gasliquid |
||||||
|
Service voltage |
AC380V AC220V AC110V AC24V DC24V DC12V allow±10% |
||||||
|
Operating |
direct acting |
direct acting |
direct acting |
||||
|
Body Material |
stainless steel |
stainless steel |
stainless steel |
||||
|
Working pressure |
water,air :0~10kgf/cm² oil:0~7kgf/cm² |
||||||
|
Material of seal |
standard: below 80℃fluid temperature use NBR, below 120℃use EPDM. VITON resistance to weak acid and weak base or below 150℃ |
||||||
