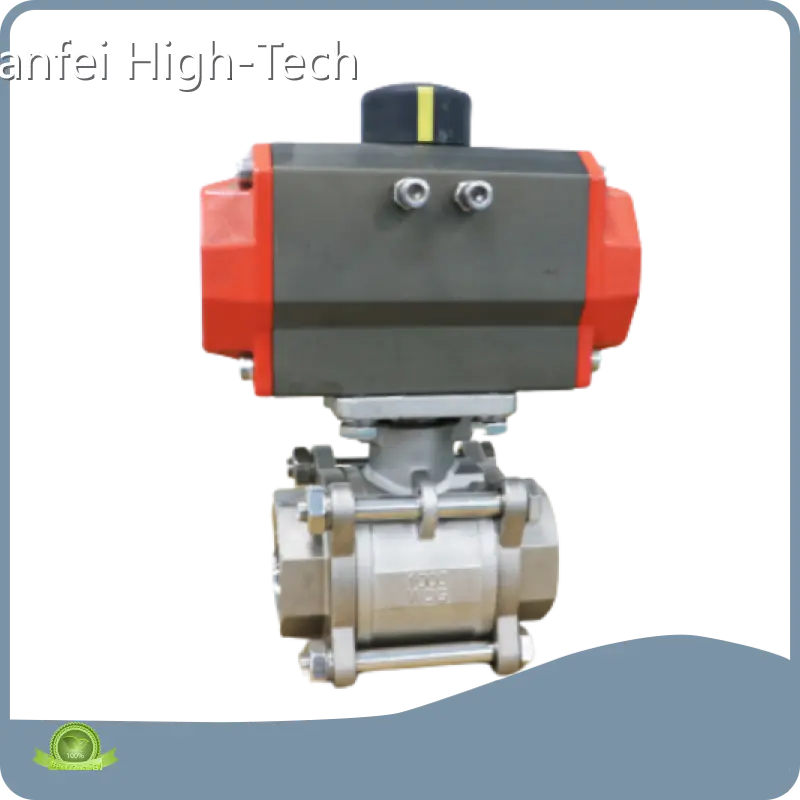

Pneumatic Valve Actuator Tianfei High-Tech-1

Product details of the pneumatic valve actuator

Quick Overview

Based on the advanced equipment, Tianfei High-Tech processes motorized valve,intelligent valve in an elaborate way. The metal material is molded at one time. The products are available with even thickness, smooth surface, high quality, great size accuracy, compact structure, good sealing and wide applications. Tianfei High-Tech can quickly develop any style pneumatic valve actuator. The quality of the product has been recognized by the international authoritative test institute. As we continue to make product improvement to better satisfy customers, this product will be more welcomed by the market in the future.

Product Introduction

We are confident about the exquisite details of pneumatic valve actuator.

Operating medium

Clean dry or lubricated air or inert gases, as long as they are non-corrosive gases compatible with internal actuator parts and lubricants. The dew point temperature of the operating medium is -20℃. The size of impurity particles in the medium does not exceed 30 μm. When the locator is selected, the size of the impurity particles in the medium used does not exceed 5 μ.

Product fittings

IMG_6761

IMG_6766

IMG_6769

IMG_6776

IMG_6780

IMG_6778

Product direct view

图片6 (3)

The compressed air is input through A to phase the left and right pistons Movement in the opposite direction , the output axis rotates counterclockwise, Open the valve, the air on the side o f the two pistons is discharged by port B Out.

图片7 (2)

The compressed air is input by port B, so that the left and right pistons move to the center, the output shaft turns clockwise, close the valve, and the air between the two pistons is sent by port A Discharge.


The compressed air is input by port A , so that the left and right pistons move in the opposite direction, and the output shaft rotates in the counterclockwise direction Open the valve, and the air on the side of the two pistons is discharged through port B


When the air is lost or the power is lost, the two pistons move to the center due to the action of the spring, and the output axis is clockwise Turn, close the valve, air is discharged through port A The B inlet accelerates the closing of the valve. The compressed air is input by port A
