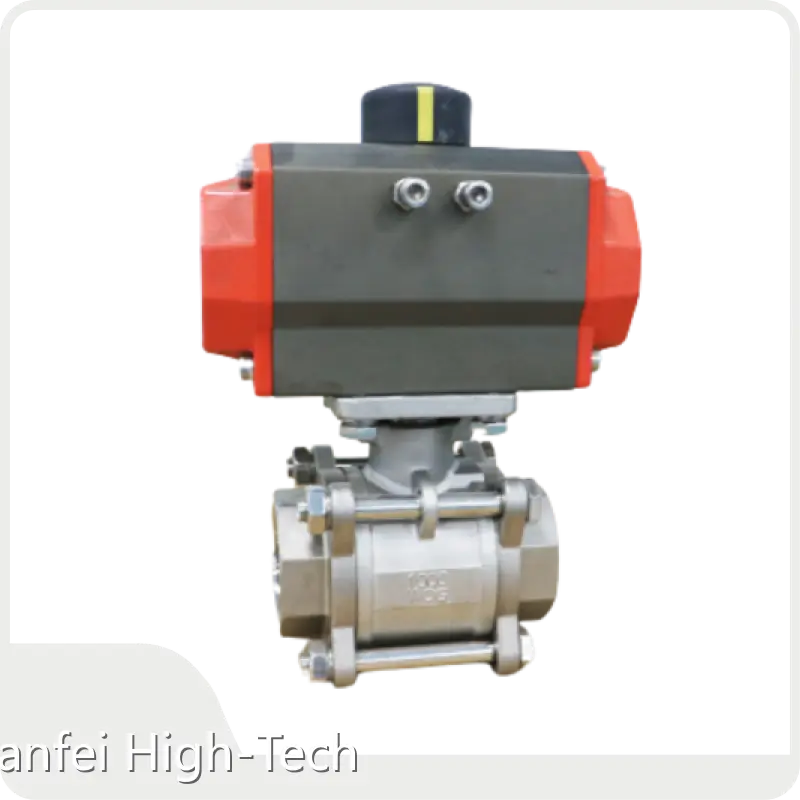

OEM Pneumatic Actuators Tianfei High-Tech

Company Advantages

· The production of Tianfei High-Tech pneumatic actuators is strictly performed and supervised.

· The product has outstanding features including the stable and durable performance.

· Tianfei High-Tech always follows strict quality assurance guidelines to produce pneumatic actuators.

Operating medium

Clean dry or lubricated air or inert gases, as long as they are non-corrosive gases compatible with internal actuator parts and lubricants. The dew point temperature of the operating medium is -20℃. The size of impurity particles in the medium does not exceed 30 μm. When the locator is selected, the size of the impurity particles in the medium used does not exceed 5 μ.

Product fittings

IMG_6761

IMG_6766

IMG_6769

IMG_6776

IMG_6780

IMG_6778

Product direct view

图片6 (3)

The compressed air is input through A to phase the left and right pistons Movement in the opposite direction , the output axis rotates counterclockwise, Open the valve, the air on the side o f the two pistons is discharged by port B Out.

图片7 (2)

The compressed air is input by port B, so that the left and right pistons move to the center, the output shaft turns clockwise, close the valve, and the air between the two pistons is sent by port A Discharge.


The compressed air is input by port A , so that the left and right pistons move in the opposite direction, and the output shaft rotates in the counterclockwise direction Open the valve, and the air on the side of the two pistons is discharged through port B


When the air is lost or the power is lost, the two pistons move to the center due to the action of the spring, and the output axis is clockwise Turn, close the valve, air is discharged through port A The B inlet accelerates the closing of the valve. The compressed air is input by port A

Company Features

· With its cutting-edge scientific research capabilities, Tianjin Tianfei High-Tech Valve Co., Ltd. has become a professional supplier of pneumatic actuators products.

· Tianfei High-Tech has a full range of production machines and advanced technology.

· We create sustainable growth. We are committed to using materials, energy, land, water, etc. to ensure that we consume natural resources at a sustainable rate. Get more info!

Application of the Product

The pneumatic actuators developed by Tianfei High-Tech is widely used in industry.

Tianfei High-Tech could customize comprehensive and efficient solutions according to customers' different needs.
