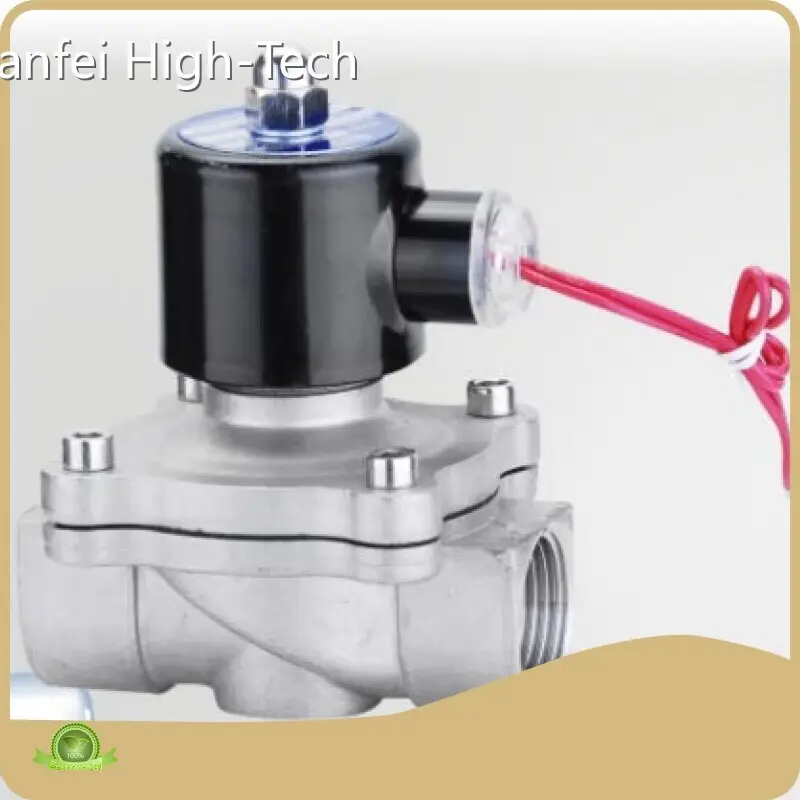

Product details of the motorized valve supplier
Product Information
Advanced technology is used in the manufacturing process of Tianfei High-Tech motorized valve supplier. The product is not only reliable in quality but also excellent in long-time performance. This product finds a broad range of applications.
The internal structure of outline dimension drawing
Technical parameters
Unit: mm
|
Model no |
A |
B |
C |
|
2W-160-10B |
69 |
57 |
107 |
|
2W-160-15B . |
69 |
57 |
107 |
|
2W-200-20B |
73 |
57 |
115 |
|
2W-250-25B |
98 |
77 |
125 |
|
2W-320-32B |
115 |
87 |
153 |
|
2W-400-40B |
121 |
94 |
162 |
|
2W-500-50B |
168 |
123 |
187 |
Structure parameters
|
Model NO. |
2W-160-10B |
2W-160-15B |
2W-200-20B |
2W-250-25B |
2W-320-32B |
2W-400-40B |
2W-500-50B |
|
Pipe Size |
3/8" |
1/2" |
3/4" |
1" |
11/4” |
11/2" |
2” |
|
Orifice size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Fluid |
Air water oil,the neutral gasliquid |
||||||
|
Service voltage |
AC380V AC220V AC110V AC24V DC24V DC12V allow±10% |
||||||
|
Operating |
direct acting |
direct acting |
direct acting |
||||
|
Body Material |
stainless steel |
stainless steel |
stainless steel |
||||
|
Working pressure |
water,air :0~10kgf/cm² oil:0~7kgf/cm² |
||||||
|
Material of seal |
standard: below 80℃fluid temperature use NBR, below 120℃use EPDM. VITON resistance to weak acid and weak base or below 150℃ |
||||||
