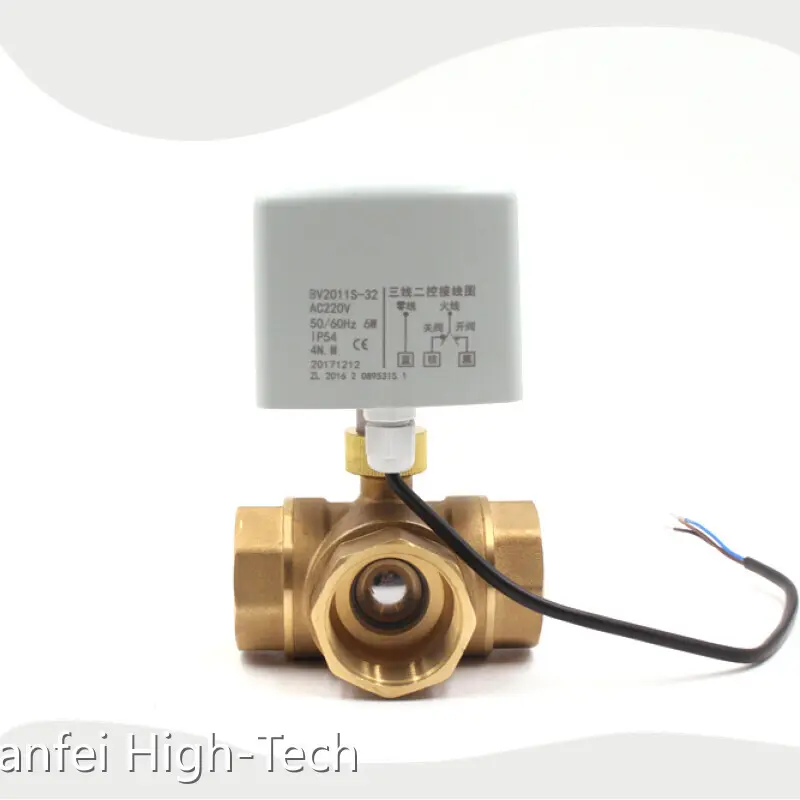

Quick install valve is specially used for on-off control Of HVAC water control system, Valve is composed by two parts,electric actuator and valve body.

Easy to remove troubleshooting and Maintenance valve.Actuator with synchronous electric drive, Action stable,Built-in limit contact point, so that the valve will power outage when fully open or fully close,The valve body is brass forged.Valve using a large motor,Large torque force, to achieve the valve Positive inversion.

Product fittings

IMG_8696

IMG_8697

IMG_8700

50p7

50p9

50p8

Product direct view

Wiring diagram

CR2

1.Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2.Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

Note : AC24V/AC220V can only be used for CWX-50K series electric valves

Company Advantages

· The production of Tianfei High-Tech high pressure motorized ball valve is ensured by cutting-edge technologies.

· Through the careful inspection of the professional QC team, Tianfei High-Tech product is 100% qualified.

· Tianjin Tianfei High-Tech Valve Co., Ltd. strictly selects the raw material of high pressure motorized ball valve to ensure high quality.

Company Features

· Tianfei High-Tech has a sound management system to ensure the quality of high pressure motorized ball valve.

· With the great advantage in talent and research, Tianjin Tianfei High-Tech Valve Co., Ltd. has become one of the biggest high pressure motorized ball valve production base in China.

· We consciously reduce pollution during our production processes, so as to minimize the impact on the environment. Besides, we will conserve energy resources.

Application of the Product

Tianfei High-Tech's high pressure motorized ball valve is widely used in the industry.

While providing excellent products, Tianfei High-Tech is dedicated to providing personalized solutions for customers according to their needs and actual situations.

Technical parameter

Voltage	Control mode	Nominal pressure	Output torque	Connection end	Power consumption	Action time	Close differential pressure	Medium temperature	Wire length
AC220V	CR02	1.6Mpa	3.5NM	Pipe thread G	6VA	<15S	<0.4Mpa	2-90℃	15cm
AC24V

Dimensional table

Connection and	Diameter	φd	L	H	Weight
Both female thread	DN20	17	60.6	50	0.58
	DN25	23	70	64	0.69
	DN32	27	75	67	0.86

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
