Hot Plastic Motorized Ball Valve Tianfei High-Tech Brand
Application
Quick install valve is specially used for on-off control Of HVAC water control system, Valve is composed by two parts,electric actuator and valve body.
Easy to remove troubleshooting and Maintenance valve.Actuator with synchronous electric drive, Action stable,Built-in limit contact point, so that the valve will power outage when fully open or fully close,The valve body is brass forged.Valve using a large motor,Large torque force, to achieve the valve Positive inversion.
Product fittings

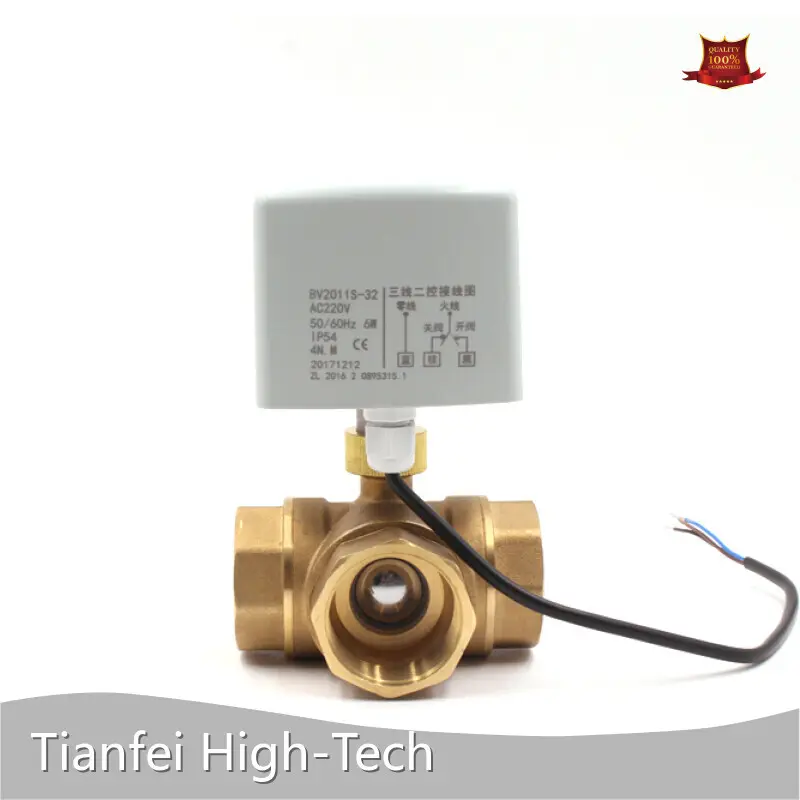

Product direct view
Wiring diagram
CR2
1.Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position
2.Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)
Note : AC24V/AC220V can only be used for CWX-50K series electric valves
Company Advantages
· High quality raw materials: When Tianfei High-Tech plastic motorized ball valve is created, they are carefully selected from reliable industrial suppliers to ensure their longevity. Also, many trials are carried out to select the right material before they enter the factory.
· The product meets the requirements of testing after many time trials.
· Tianjin Tianfei High-Tech Valve Co., Ltd. provides all our customers with the services that they require under one roof.
Company Features
· Tianjin Tianfei High-Tech Valve Co., Ltd. has widely popularity and reputation in plastic motorized ball valve field.
· We have a clear and defined manufacturing plant. Its highly efficient route and layout make everything we do is clear and defined, from the delivery of raw materials to final despatch.
· Undertaking responsibilities to promote plastic motorized ball valve is our mission. Please contact us!
Application of the Product
plastic motorized ball valve has a wide range of applications.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
Technical parameter
| Voltage | Control mode | Nominal pressure | Output torque | Connection end | Power consumption | Action time | Close differential pressure | Medium temperature | Wire length |
| AC220V | CR02 | 1.6Mpa | 3.5NM | Pipe thread G | 6VA | <15S | <0.4Mpa | 2-90℃ | 15cm |
| AC24V |
Dimensional table
| Connection and | Diameter | φd | L | H | Weight |
| Both female thread | DN20 | 17 | 60.6 | 50 | 0.58 |
| DN25 | 23 | 70 | 64 | 0.69 | |
| DN32 | 27 | 75 | 67 | 0.86 |
