· Tianjin Tianfei High-Tech Valve Co., Ltd. is a modern enterprise with first-rate independent research and development on plastic motorized ball valve products.

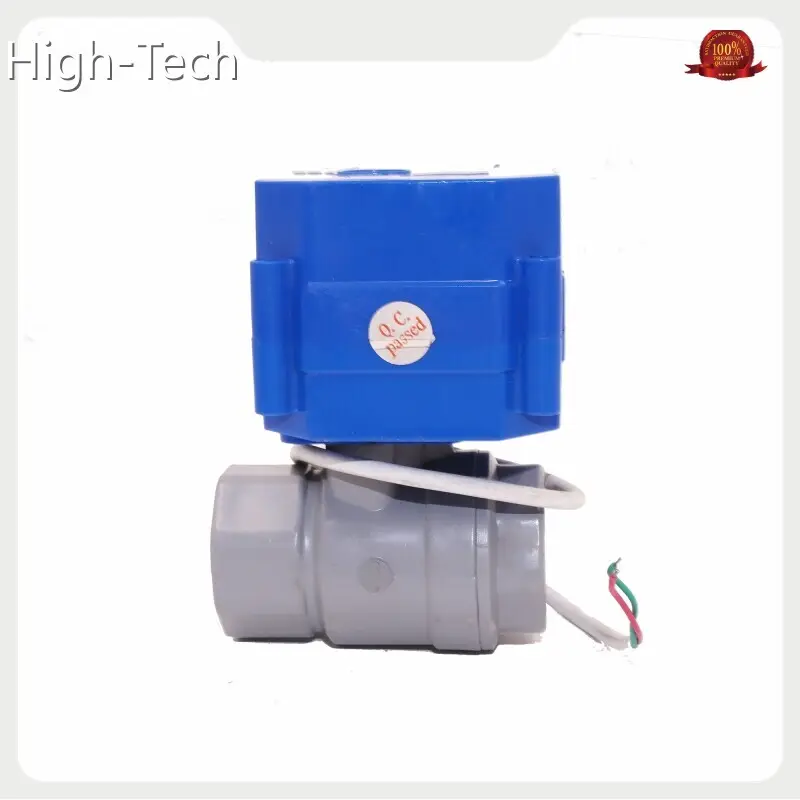

· Produced by advanced machine and mature technology, plastic motorized ball valve is of great performance.

· Tianjin Tianfei High-Tech Valve Co., Ltd. actively contribute to the industry, proud of work and achievements. Inquiry!

Product Comparison

The plastic motorized ball valve mainly promoted by Tianfei High-Tech have been further improved in the past through the technical improvement, which is reflected in the following aspects.

Enterprise Advantages

At present, Tianfei High-Tech has a technical R&D team who is experienced, diligent and courageous. Based on gathered wisdom, the team members are committed to developing new products and writing new miracles.

We established a full set of specifications of the customer service system to provide customers with one-stop services, including details information giving and consultation, return and exchange of products. We solve various needs of customers, so as to improve customer's satisfaction and support for our company.

Tianfei High-Tech adheres to the business philosophy of 'detail determines quality and integrity continues market'. We always strive for survival by quality and achieve development through reputation. And the benefit is gained from management. We are committed to providing effective solutions for customers at home and abroad.

After years of rapid development, Tianfei High-Tech expands the business range and improve corporate strength and social recognition.

Tianfei High-Tech's business covers many cities across the country, and the sales network is expanding year by year. After continuous development, we are currently exploring overseas markets.

Technical parameter

Brass	Connection	Sizes	d	L	H
	Both female thread Full-port	DN8	8	46	31
		DN15	15	57	38
		DN20	20	71	45
		DN25	23.5	72	49
	Both feamle thread Reduce-port	DN10	8	46	31
		DN20	15	66	38
		DN25	20	72	47
		DN32	25	86	60
	Vertical Three-way	DN15	12	63	49
	Vertical Three-way	DN20	15	66	53
	Female-male thread	DN15	15	63	38
		DN20	15	66	38
		DN25	15	81	44
		DN32	20	76	50
	Both male thread	DN15	15	68	38
CPVC	Both female thread	DN15	15	60	47
CPVC	Both female thread	DN20	20	72	51
SS304/316	Both female thread	DN8	8	46	31
		DN10	8	46	30.5
		DN15	15	55	38
		DN20	15	63	39
		DN20	20	71	45
		DN25	20	75	47
		DN25	25	72	49
Horizontal Three-way (Brass)	Sizes	d	L1	L2	H
	DN8	6	52.6	39	24.5
	DN15	12	72	55	39
	DN20	15	86	63.5	44
	DN25	15	97	68.5	43.5

Dimensional table

Product model	Rated voltage	Working current	Output torque	Open/close time	Control mode	Working pressure	Power	Medium temperature	Size	IP Garde	Special function
CWX-60P	DC3-6V DC12V AC/DC9-24V AC220V AC85-265V	Max100mA（CR04 except Max150mA）	Max6NM	＜8s	CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06	Max1.0Mpa	<5W	0-90℃	DN8-32 Two-way DN8-25 Three-way	IP65	CR01 CR02 CR02+ CR03 CR03A CR04(with singal feedback)

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
