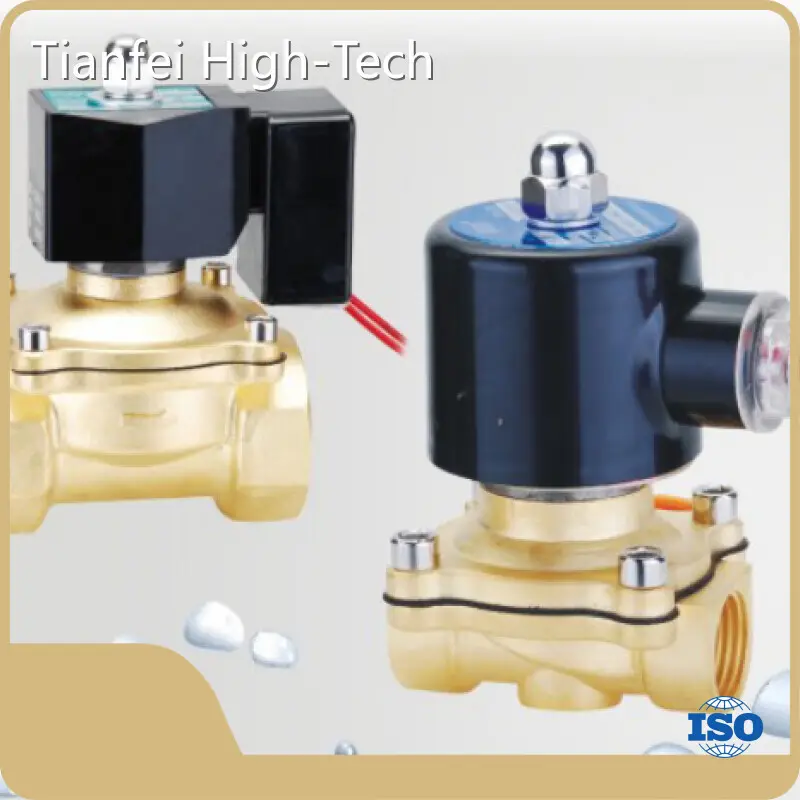

Diaphragm Solenoid Valve Tianfei High-Tech,
Company Advantages
· Compared to the traditional ones, the design of Tianfei High-Tech diaphragm solenoid valve is more innovative and appealing.
· Comprehensive quality control is carried out to ensure that the product meets all relevant quality standards.
· Tianjin Tianfei High-Tech Valve Co., Ltd. has grown a stronger global network.
The internal structure of outline dimension drawing
Technical parameters
Unit: mm
|
Model no. |
A |
B |
C |
|
2W-025-06 |
39 |
42 |
74 |
|
2W-025-08 |
39 |
42 |
74 |
|
2W-040-08 |
51 |
42 |
74 |
|
2W-040-10 |
62 |
52 |
85 |
|
2W-160-10 |
51 |
52 |
85 |
|
2W-160-15small |
62 |
55 |
102 |
|
2W-160-15 |
67 |
55 |
102 |
|
2W-200-20 |
86 |
55 |
113 |
|
2W-250-25 |
90 |
73 |
117 |
|
2W-320-32 |
106 |
87 |
130 |
|
2W-400-40 |
123 |
93 |
1 64 |
|
2W-500-50 |
A |
B |
176 |
Structure parameters
|
Model NO. |
2W-025-06 |
2W-025-08 |
2W-040-10 |
2W-160-10 |
2W-160-15 |
2W-200-20 |
2W-250-25 |
2W-320-32 |
2W-400-40 |
2W-500-50 |
|
Pipe Size |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
11/2" |
2” |
|
|
Orifice size |
2.5mm |
4mm |
4mm |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
0.23 |
0.6 |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
|
Fluid |
Air water oil,the neutral gasliquid |
|||||||||
|
Service voltage |
AC380V AC220V AC110V AC24V DC24V DC12V allow ±10% |
|||||||||
|
Operating |
direct acting |
type |
Normally Closed |
|||||||
|
Body Material |
Brass |
viscosity |
Below 20CST |
|||||||
|
Working pressure |
Water,air :0~10kgf/cm² Oil:0~7kgf/cm² |
|||||||||
|
Material of seal |
Standard: below 80℃ fluid temperature use NBR. below 120℃ use EPDM. below 150℃ use VITON |
|||||||||
Company Features
· As the pathbreaker in the diaphragm solenoid valve business, Tianjin Tianfei High-Tech Valve Co., Ltd. works hard all the time.
· Our products meet European and American standards and are widely recognized and trusted by customers. They have imported the products from us many times. There have been many cooperations with large domestic companies at home and abroad. At the moment, our customers are mainly from Europe, Asia, South America, Middle East, Africa, etc. We have production staff with many years of experience in the diaphragm solenoid valve industry. They have rich procurement resources and production management experience, which enables them to have effective control over costs.
· The excellence in quality of diaphragm solenoid valve is our promise. Get info!
Product Details
Tianfei High-Tech's diaphragm solenoid valve has excellent performances by virtue of the following excellent details.
Application of the Product
diaphragm solenoid valve of Tianfei High-Tech can be used in various scenarios in different fields.
Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.
