Model no.	A	B	C
2W-025-06	39	42	74
2W-025-08	39	42	74
2W-040-08	51	42	74
2W-040-10	62	52	85
2W-160-10	51	52	85
2W-160-15small	62	55	102
2W-160-15	67	55	102
2W-200-20	86	55	113
2W-250-25	90	73	117
2W-320-32	106	87	130
2W-400-40	123	93	1 64
2W-500-50	A	B	176

Structure parameters

Model NO.	2W-025-06	2W-025-08	2W-040-10	2W-160-10	2W-160-15	2W-200-20	2W-250-25	2W-320-32	2W-400-40	2W-500-50
Pipe Size	1/8"	1/4"	3/8"		1/2"	3/4"	1"	1 1/4"	11/2"	2”
Orifice size	2.5mm	4mm	4mm	16mm	16mm	20mm	25mm	32mm	40mm	50mm
CV value	0.23		0.6	4.8	4.8	7.6	12	24	29	48
Fluid	Air water oil,the neutral gasliquid
Service voltage	AC380V AC220V AC110V AC24V DC24V DC12V allow ±10%
Operating	direct acting				type		Normally Closed
Body Material	Brass				viscosity		Below 20CST
Working pressure	Water,air :0~10kgf/cm² Oil:0~7kgf/cm²
Material of seal	Standard: below 80℃ fluid temperature use NBR. below 120℃ use EPDM. below 150℃ use VITON

Company Features

· As a forefront enterprise in the diaphragm solenoid valve in industry, Tianjin Tianfei High-Tech Valve Co., Ltd. has steadily developed over the years.

· Tianfei High-Tech has professional developers and R&D base to guarantee the quality of the diaphragm solenoid valve. Our high quality diaphragm solenoid valve makes our Tianfei High-Tech more promising with reasonable price.

· Tianjin Tianfei High-Tech Valve Co., Ltd. will design and give the perfect diaphragm solenoid valve for your requirements. Get quote!

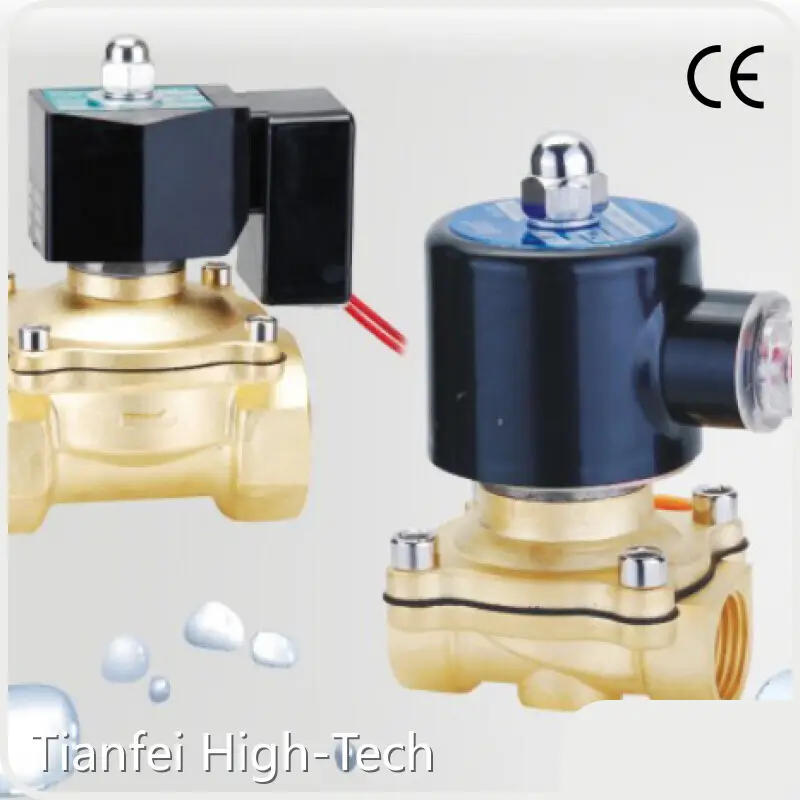

Product Details

With a focus on product's quality, our company strives for excellent quality in the process of producing diaphragm solenoid valve.

Product Comparison

We insist on regulating the production process of the products in accordance with standards, so as to promote the diaphragm solenoid valve has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.

Enterprise Advantages

Based on the scientific and rigorous management system, our company fostered a team of outstanding talents who dare to struggle and challenge.

We always render our customers with advanced technical support and sound after-sales service.

Our company will stick to the operation idea of 'quality, innovation, efficiency', and keep the faith of 'cooperative, optimistic, positive '. Keeping up with the trend of the times, we constantly innovate products to meet consumer demand, and provide more and better products and services for consumers.

Built in Tianfei High-Tech is a enterprise with years of experience.

Tianfei High-Tech's products are favored by consumers at home and abroad.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
