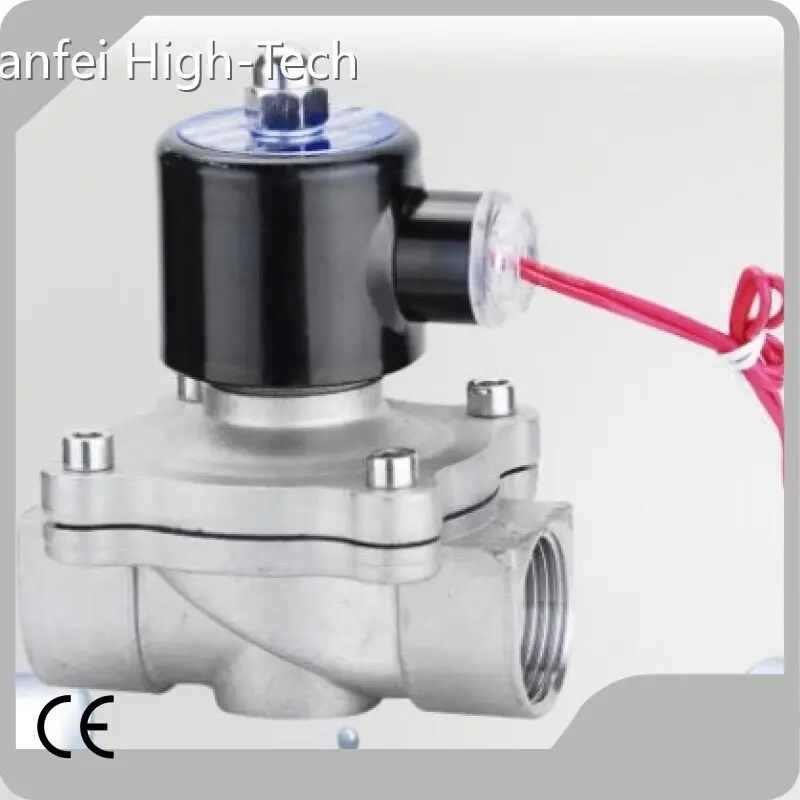

Diaphragm Operated Solenoid Valve by Tianfei High-Tech
Product details of the diaphragm operated solenoid valve
Quick Detail
The offered Tianfei High-Tech
Product Description
More details of diaphragm operated solenoid valve are shown as follows.
The internal structure of outline dimension drawing
Technical parameters
Unit: mm
|
Model no |
A |
B |
C |
|
2W-160-10B |
69 |
57 |
107 |
|
2W-160-15B . |
69 |
57 |
107 |
|
2W-200-20B |
73 |
57 |
115 |
|
2W-250-25B |
98 |
77 |
125 |
|
2W-320-32B |
115 |
87 |
153 |
|
2W-400-40B |
121 |
94 |
162 |
|
2W-500-50B |
168 |
123 |
187 |
Structure parameters
|
Model NO. |
2W-160-10B |
2W-160-15B |
2W-200-20B |
2W-250-25B |
2W-320-32B |
2W-400-40B |
2W-500-50B |
|
Pipe Size |
3/8" |
1/2" |
3/4" |
1" |
11/4” |
11/2" |
2” |
|
Orifice size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Fluid |
Air water oil,the neutral gasliquid |
||||||
|
Service voltage |
AC380V AC220V AC110V AC24V DC24V DC12V allow±10% |
||||||
|
Operating |
direct acting |
direct acting |
direct acting |
||||
|
Body Material |
stainless steel |
stainless steel |
stainless steel |
||||
|
Working pressure |
water,air :0~10kgf/cm² oil:0~7kgf/cm² |
||||||
|
Material of seal |
standard: below 80℃fluid temperature use NBR, below 120℃use EPDM. VITON resistance to weak acid and weak base or below 150℃ |
||||||
Company Advantages
Tianjin Tianfei High-Tech Valve Co., Ltd. (Tianfei High-Tech) is a modern enterprise. We specialize in R&D, production and sales of motorized valve,intelligent valve. At present, the profit is continuously decreasing in the valve market. Tianfei High-Tech realizes that the core competitiveness is not solely depending on product price. The brand Tianfei High-Tech is created to enhance corporate competence and sustain development, so that we won't be eliminated in the fierce competition. To provide customers with more efficient and quality service, our company is building and improving the perfect service system in pre-sales and after sales. Tianfei High-Tech closely keeps up with the trend of the times and pays great attention to market demand. According to different needs, we can design and produce novel and unique motorized valve,intelligent valve with excellent performance. We can provide professional custom service.
If you have any questions and comments on Tianfei High-Tech, feel free to contact us.
