Custom Valve Manufacturer Tianfei High-Tech Manufacture-2

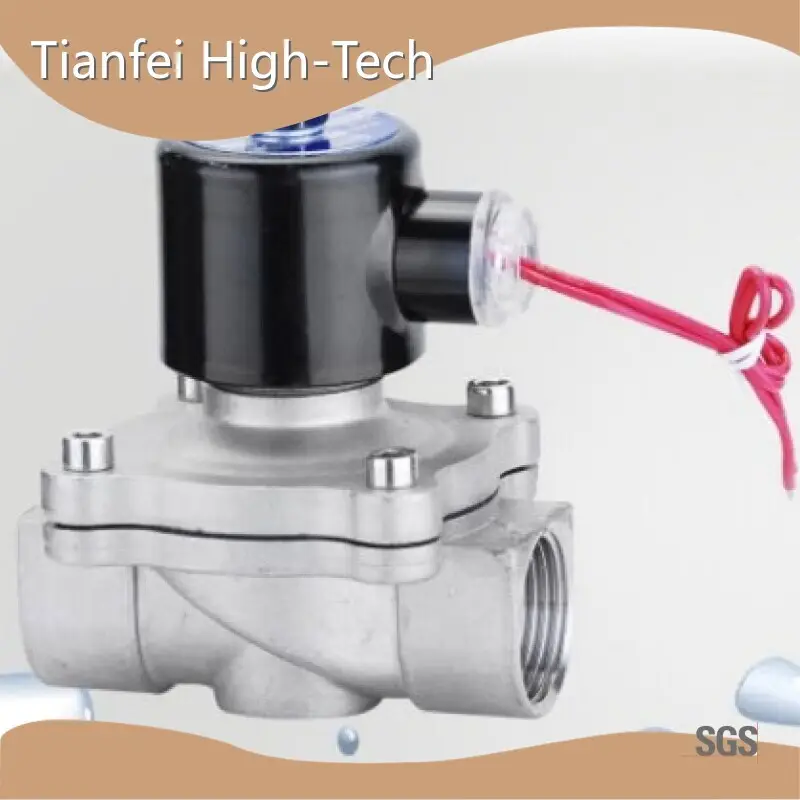

Product details of the custom valve manufacturer
Quick Overview
Tianfei High-Tech has professional design and R&D capabilities and strict quality control system. All kinds of motorized valve,intelligent valve are produced based on the market demand. Apart from classic design, they are also wear-resistant and corrosion-resistant. And they can be used for a long time with better sealing performance and stronger stability. Tianfei High-Tech custom valve manufacturerhas a user-friendly functional design, providing the convenience for users. We further consolidate its quality by using advanced technology. This product has many significant advantages and enjoys a high reputation and good prospects in the domestic and international markets.
Product Description
Our custom valve manufacturer is exquisite in workmanship, and we are not afraid to enlarge the details of our products.
The internal structure of outline dimension drawing
Technical parameters
Unit: mm
|
Model no |
A |
B |
C |
|
2W-160-10B |
69 |
57 |
107 |
|
2W-160-15B . |
69 |
57 |
107 |
|
2W-200-20B |
73 |
57 |
115 |
|
2W-250-25B |
98 |
77 |
125 |
|
2W-320-32B |
115 |
87 |
153 |
|
2W-400-40B |
121 |
94 |
162 |
|
2W-500-50B |
168 |
123 |
187 |
Structure parameters
|
Model NO. |
2W-160-10B |
2W-160-15B |
2W-200-20B |
2W-250-25B |
2W-320-32B |
2W-400-40B |
2W-500-50B |
|
Pipe Size |
3/8" |
1/2" |
3/4" |
1" |
11/4” |
11/2" |
2” |
|
Orifice size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Fluid |
Air water oil,the neutral gasliquid |
||||||
|
Service voltage |
AC380V AC220V AC110V AC24V DC24V DC12V allow±10% |
||||||
|
Operating |
direct acting |
direct acting |
direct acting |
||||
|
Body Material |
stainless steel |
stainless steel |
stainless steel |
||||
|
Working pressure |
water,air :0~10kgf/cm² oil:0~7kgf/cm² |
||||||
|
Material of seal |
standard: below 80℃fluid temperature use NBR, below 120℃use EPDM. VITON resistance to weak acid and weak base or below 150℃ |
||||||
Company Introduction
Located in tian jin, Tianjin Tianfei High-Tech Valve Co., Ltd. is a company dedicated to providing motorized valve,intelligent valve for customers. Tianfei High-Tech not only pays attention to product differentiation, but also strives to improve product relevance and customer perceived value. This is how the brand Tianfei High-Tech comes out. Tianfei High-Tech has established a complete service system to provide consumers with intimate after-sales services. Tianfei High-Tech has great design capability, advanced processing technology and quality after-sales service system. We are able to provide professional and efficient custom service.
If you want further information about motorized valve,intelligent valve, please leave your contact information. Tianfei High-Tech will reply to you in time!
