Custom Valve Manufacturer Bulk Buy Tianfei High-Tech

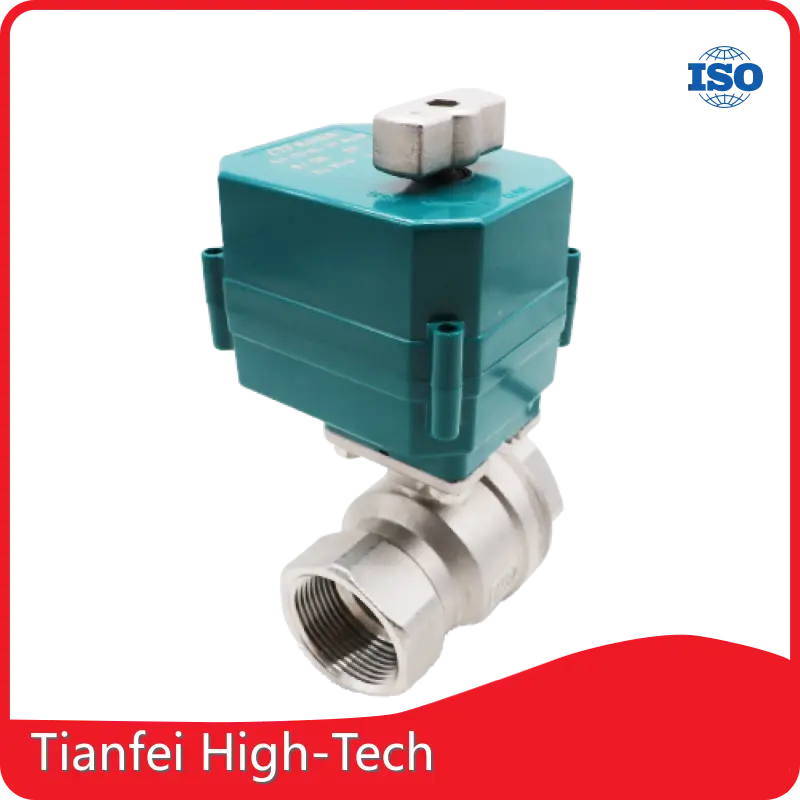

Product details of the custom valve manufacturer

Product Overview

Tianfei High-Tech introduces foreign and domestic advanced production technology in the industry. Based on the advanced technology, we design and manufacture motorized valve,intelligent valve suitable for all walks of life. In addition to good design, they have better performance in sealing, stability and safety. Tianfei High-Tech custom valve manufacturer is made from imported materials with superior performance. Tianfei High-Tech employs professional quality check team to test the quality of the product. Tianjin Tianfei High-Tech Valve Co., Ltd. will provide delivery and shipping rate to assist customers to make purchase plan.

Product Introduction

The custom valve manufacturer produced by Tianfei High-Tech is better than the previous generation. The specific performance is as follows.

Application

1. University LABS, automotive laboratories;

2. Drug production, diesel fuel saving, etc.;

3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities;

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works;

5. Water-saving appliances, drinking water equipment, etc.

Product Dtail

IMG_8505

IMG_8499

Product fittings

IMG_8408

IMG_8409

IMG_8410

IMG_8411

Shape Diagram

Wiring diagram

CR01

1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2.Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.

CR04

1.SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position 2.SW disconnecting ,the valve close, getting the position and power off automatically, the valvere mains fully open/close position

CR02

1.Connecting SW to OPEN, the valve opens , getting the position , automatically power off, the valve remain fully open position 2.Connection SW to CLOSED, the valve close , getting the position , automatically power off, the valve remains side passes position(fully closed) Note：AC24V/AC220V can only be used for CWX-50K series electric valves

CR05

1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note：Please make sure the signal wires "red","black" and "green" be connected at first, then contact with the power wires " yellow" and "blue"

CR03A

1.Connecting SW, the valve opens , getting the position ,automatically power off, the valve remain fully open position 2.Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed) Note：When power is DC voltage and Red Wires is “+”，Blue wire is “—”

Company Information

Over such years of solid development, Tianjin Tianfei High-Tech Valve Co., Ltd. has been remaining a leading position in developing and manufacturing custom valve manufacturer. Our professional workers are with many years of custom valve manufacturer production experience, who help to manufacture high-quality products. Reliability and integrity are the cornerstones of Tianfei High-Tech's strong relationships with our partners. Contact us!
If you have the intention to cooperate with Tianfei High-Tech, there are more surprises waiting for you!
