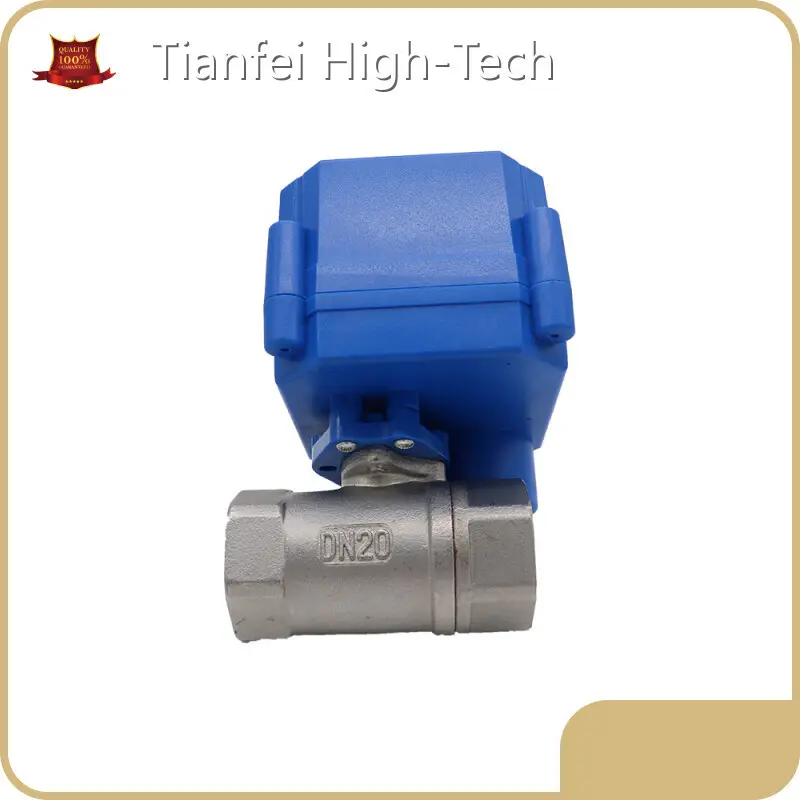

Custom Motorized Ball Valve Manufacturer Tianfei High-Tech-1

Company Advantages

· motorized ball valve manufacturer is delicately designed and manufactured.

· motorized ball valve manufacturer finds a broad range of applications due to its versatility, product properties and economics.

· Tianjin Tianfei High-Tech Valve Co., Ltd. provides first-class service to customers with modern enterprise management system and perfect after-sales service network.

Application

1. Heat energy meters, fire work, save water system

2. Auto control system, industrial mini auto control equipment

3. Water saving equipment, drinking water equipment

4. Air-conditioning fan coin(HVAC)

Gold quality

strict quality assurance

Industry experience

Independent research, development, production and sales, with a number of patent certificates

Market area

20 years of establishment of the factory, strong strength, credibility first

Team introduction

Products are certified by professional organizations, quality assurance

Product advantages

Factory direct selling, support customization, buy the whole process of installation technical support

Product fittings

IMG_0074

IMG_0075

IMG_7859

IMG_7860

IMG_7862

IMG_7919

Product direct view

1 (6)

2 (5)

Wiring diagram

CR01

1.Connecting Sw and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2.Connecting Sw and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.

CR02

1.Connecting Sw to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position 2.Connection sw to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed) Note : AC24V/AC220V can only be used for CWX-50K series electric valves

CR03A

1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal 2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

CR04

1. SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position 2.SW disconnecting ,the valve close, getting the position and power off automatically, the valve remains fully open/close position

CR02+

1.Connecting SW to OPEN, the valve opens , getting the position and automatically power off, the valve remain fully open position 2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically power off, the valve remains side passes position(ully closed) Note : As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires can not be power-on together to keep valve safe

CR05

1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note : Please make sure the signal wires "red"," black" and " green" be connected at first, then contact with the power wires " yellow" and "blue"

CR03A

1.Connecting SW, the valve opens, getting the position, automatically power off the valve remain fully open position, meanwhile output open position signal 2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

CR06

1. Connecting SW and OPEN,the valve opens,getting the position,automatically power off,the valve remains fully open position. 2. Connecting SW and CLOSE,the valve close,getting the position,automatically power off,the valve remains fully close position.

CR03T

1.SW1 open, SW2 open, valve full close, getting the position valve remain fully close position 2.SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position 3.SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position 4.SW1 close, SW2 close, valve full open, getting the position valve remain fully open positio

Company Features

· Our motorized ball valve manufacturer are produced by our advanced technology and well-equipped facilities.

· Our project management team is an asset of our company. With their years of experience in the motorized ball valve manufacturer industry, they can provide a combination of development and manufacturing solutions in the process of managing our projects. We have a team of dedicated manufacturing managers. Utilizing their years of manufacturing expertise in the motorized ball valve manufacturer industry, they can continuously optimize the manufacturing process by implementing new technologies.

· Tianfei High-Tech holds the tenet of customer service. Ask!

Product Details

With a focus on quality, Tianfei High-Tech pays great attention to the details of motorized ball valve manufacturer.
