3 4 Inch Motorized Ball Valve Tianfei High-Tech Brand-1
Application
1. University LABS, automotive laboratories;
2. Drug production, diesel fuel saving, etc.;
3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities;
4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works;
5. Water-saving appliances, drinking water equipment, etc.

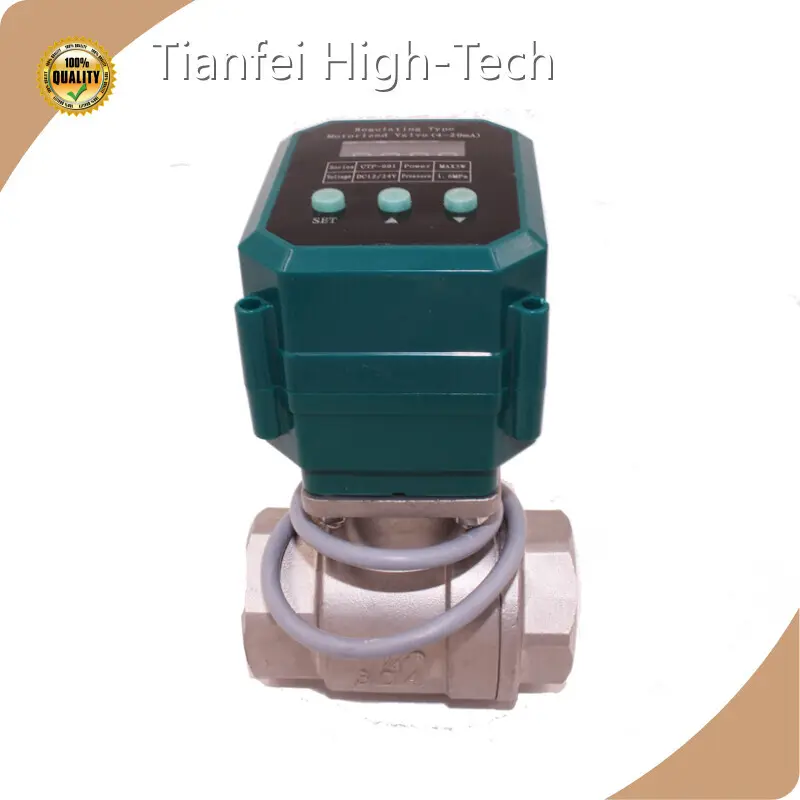

Product display
Shape Diagram
Wiring diagram
Instructions for High performance industrial computer kernel, large torque output, can drive dn8-dn32 calibre ball valve;
Input 4~20mA control, feedback 4-20ma signal;
Control accuracy: 0.5%~1%;
Electric actuators have two kinds of working status: automatic state (input signal control switch), manual state (key control switch);
1. In manual mode, no operation for 30 seconds, automatic return to automatic mode, receiving input 4~20mA signal control;
2. When the input signal is broken, or the signal is lower than 3mA (the standard is the lowest, normal is 4mA), the warning of "OFF" is displayed;
3. Automatically eliminate the input signal of the input signal below 4mA or greater than 20mA due to abnormal reason to stop the valve operation;
4. In the automatic state, you can check the input signal size at any time (in the form of percentages, such as 12mA display is 50%), so as to facilitate on-site debugging;
5. Press the button 1 to switch "automatic/manual" mode, and the opening displays the flicker when the representative switches to manual mode, which can be manually adjusted;Once again press the button 1, the opening display stop flicker, switch to automatic mode;
6. In manual mode, press the button 2 to open the valve, release the key or open the position valve to stop automatically;
7. In manual mode, press the button 3 to close the valve, release the button or close the valve to stop automatically.
Company Advantages
· Tianfei High-Tech 3 4 inch motorized ball valve is manufactured by using the high quality raw materials. These high performance and well-selected raw materials are bound to highlight the value of this product.
· Experienced quality inspectors ensure that the product meets the highest quality standards.
· Together with perfect after-sales service, and comprehensive technical support, the product has won the long-term trust of customers.
Company Features
· Established years ago, Tianjin Tianfei High-Tech Valve Co., Ltd. has been operating a highly-efficient business in designing, manufacturing, and supplying 3 4 inch motorized ball valve.
· Our company maintains a highly experienced and skilled engineering team. They continuously research and develop the latest manufacturing technologies to make the company keep up with market demands.
· Our aim is to expand our global business. We will grasp the market opportunities and adapt flexibly to market trends and customers' purchasing tendency so as to enlarge marketing channels.
Application of the Product
The 3 4 inch motorized ball valve produced by Tianfei High-Tech has a wide range of applications.
With a focus on customers, Tianfei High-Tech analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.
Technologist Parts
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode | Working pressure | Power | Medium temperature | Size | IP Garde | Mode of regulation |
| CTF001 Modulating type | DC12V DC24V |
＜200mA | Max6NM | ＜30s | 4-20mA | Max1.6Mpa | <5W | 0-90℃ | DN8-32 | IP65 | Manual and electric |
Main Parts
| SS304/316 | Sizes | d | L | H |
| DN15 | 15 | 62 | 55 | |
| DN20 | 20 | 71 | 63 | |
| DN25 | 25 | 81 | 78 | |
| DN32 | 32 | 93 | 84 | |
| UPVC | DN15 | 15 | 121 | 50 |
| DN20 | 20 | 135 | 62 | |
| DN25 | 25 | 150 | 69 | |
| DN32 | 32 | 165 | 82 |
| Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
| DN15 | 15 | 61 | 48 | 46 | |
| DN20 | 20 | 67 | 48 | 54 | |
| DN25 | 25 | 96 | 74 | 68 | |
| Horizontal Three-way (SS304/316) | DN15 | 15 | 80 | 52 | 54 |
| DN20 | 20 | 82 | 62 | 59 | |
| DN25 | 25 | 87 | 67 | 71 |
