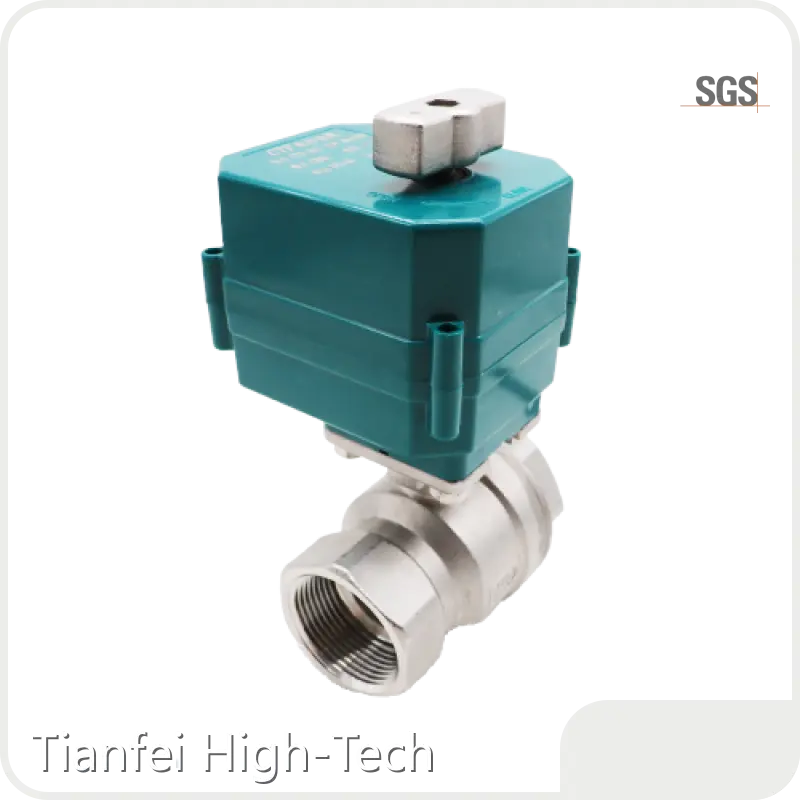

12v Motorized Ball Valve Bulk Buy Tianfei High-Tech

Application

1. University LABS, automotive laboratories;

2. Drug production, diesel fuel saving, etc.;

3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities;

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works;

5. Water-saving appliances, drinking water equipment, etc.

Product Dtail

IMG_8505

IMG_8499

Product fittings

IMG_8408

IMG_8409

IMG_8410

IMG_8411

Shape Diagram

Wiring diagram

CR01

1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2.Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position.

CR04

1.SW connecting ,the valve open, getting the position and the power off automatically, the valve remains fully open/close position 2.SW disconnecting ,the valve close, getting the position and power off automatically, the valvere mains fully open/close position

CR02

1.Connecting SW to OPEN, the valve opens , getting the position , automatically power off, the valve remain fully open position 2.Connection SW to CLOSED, the valve close , getting the position , automatically power off, the valve remains side passes position(fully closed) Note：AC24V/AC220V can only be used for CWX-50K series electric valves

CR05

1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. 2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically. Note：Please make sure the signal wires "red","black" and "green" be connected at first, then contact with the power wires " yellow" and "blue"

CR03A

1.Connecting SW, the valve opens , getting the position ,automatically power off, the valve remain fully open position 2.Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed) Note：When power is DC voltage and Red Wires is “+”，Blue wire is “—”

Company Advantages

· To meet the global needs, Tianfei High-Tech 12v motorized ball valve adopts internationally-proven materials.

· The rigorous testing process makes the product be high quality and stable performance.

· The product is available at a competitive price and used by more and more people.

Company Features

· Tianjin Tianfei High-Tech Valve Co., Ltd. is known for the manufacturing excellency of 12v motorized ball valve. Our capabilities in offering professional customized services are reputable.

· There is a complete production management system in the factory. Once the order is placed, the factory will make an arrangement in terms of the master production schedule, material requirements planning, and production process management.

· We aim to raise awareness of quality importance between our suppliers and employees. Through our high-quality, functional products and solutions, we strive to make good products for everyone.

Application of the Product

Tianfei High-Tech's 12v motorized ball valve can play an important role in various fields.

With a focus on motorized valve,intelligent valve, Tianfei High-Tech is dedicated to providing reasonable solutions for customers.
