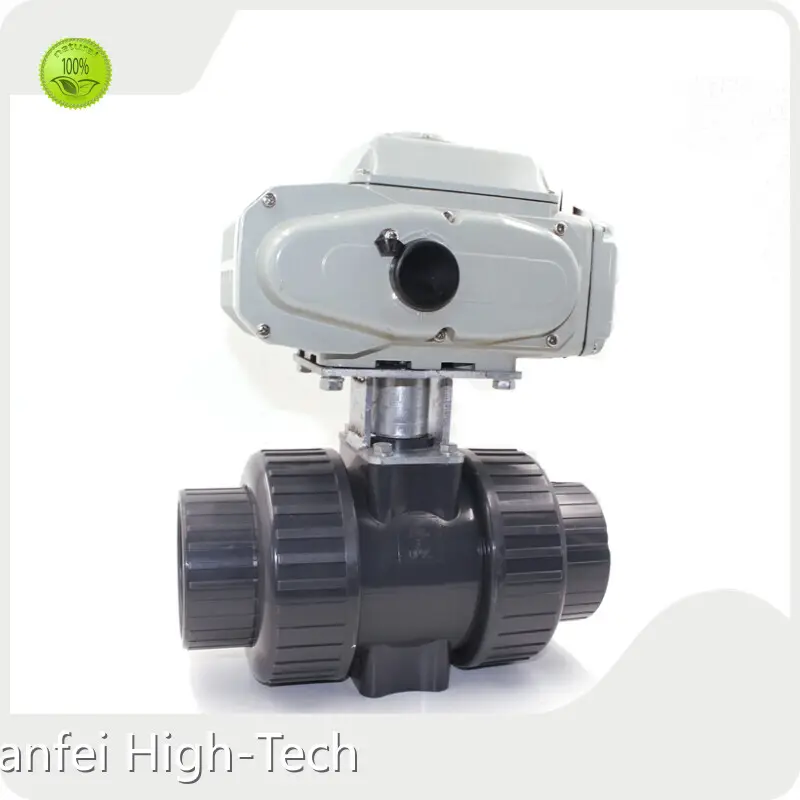

110v Motorized Ball Valve Tianfei High-Tech-1

Company Advantages

· Tianfei High-Tech 110v motorized ball valve is manufactured using automation technology.

· The product has a long-lasting excellent performance and strong usability.

· Fully meets the customer requirements, it will have good market prospects.

Feature

1．Powerful function: intelligently, proportionally type, switch type, it has all kinds of signal output type you wish for;

2．Small volume: the volume is just about thirty percent of product of same kind;

3．Be portable: its weight is just about thirty percent of product of same king;

4．Beautiful appearance: outer casing is pressure-cast with Al alloy, fine and evenly, reducing electromag-netic disturbance;

5．Wear-rseistance: the worm-wheel output axle integration design avoids the stitch closure in connection place of key, the transmission precision high, forged with special copper alloy, with features of high strength and super wear-resistance;

6．Safety quarantee: has passed AC1500v pressure-withstand test, F grade of insulated electric machine, which guarantees the operation safety;

7．Easily forming complete set: adopting single-phase power, simplifying wire connection from outside also can be 380V DC power;

8．Using simply: don’t need add-oil, point-check, and owns performance of waterproof and antirust, could be installed at any angle;

9．Protection appliance: double position-limiting, over-hot protection, overload protection(optionally);

10．Many kinds of speed: whole stroke time has many kinds as 9s,13s,15s,30s,100s(before dispatching from the factory in order to establish);

11．Antirust and anticorrosion: complete-machine support, both coupling and screw are made of stainless steel;

12．Intelligently numerically-control: the function of intelligently controlling module height is integrated into electric appliance body, the externally-connected localizer is not required. Numerically setting, numerically regulating, highly accurate, self-diagnosis, many functions on one machine.

Product fittings

IMG_8791

IMG_8794

IMG_8802

IMG_8902

IMG_8905

IMG_8903

Shade Diagram

Wiring diagram

CR11 （AC passive contact type）

1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, black and green wires output the open signal, the valve remains fully open position. 2.Connecting SW and CLOSE, the valve closes, getting the position, power off  automatically,black and red wires output the close signal, the valve remains fully close position

CR12 （ AC active contact type ）

 1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires  output the open signal, the valve remains fully open position. 2.Connecting SW and CLOSE, the valve closes, getting the position, power off  automatically,yellow and red wires output the close signal, the valve remains fully close position

CR13 （DC passtive contact type ）

1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position. 2.Connecting SW and CLOSE, the valve closes, getting the position, power off  automatically,yellow and red wires output the close signal, the valve remains fully close position

AC380v （standard wiring diagram )

1.KO close,valve open,getting the position,internal automatically power off 2.KC close,valve close,getting the position,internal  automatically power off

AC380v （passive contact type wiring diagram ）

1.KO close,valve open,getting the position,internal automatically power off,terminal 8 output open position signal 2.KC close,valve close,getting the position,internal automatically power off,terminal 9 output close position signal

Intelligent modulating type

 1.Power(L&N) 2.Input signal,output signal

Company Features

· Tianjin Tianfei High-Tech Valve Co., Ltd. today stands as one of the most successful manufacturers in China to produce 110v motorized ball valve with the latest technology and best expertise.

· 110v motorized ball valve has gained wide recognition for its high quality. The quality of 110v motorized ball valve is superior with the help of advanced technology. The quality of 110v motorized ball valve has reached high level.

· Our company culture is to encourage to stay open-minded. We take in individual differences, especially differences in minds, backgrounds, experiences, world views, and expertise. These differences will strengthen our team's ability.

Application of the Product

110v motorized ball valve of Tianfei High-Tech has very extensive application in different scenarios.

Tianfei High-Tech always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.

Product Comparison

Tianfei High-Tech's 110v motorized ball valve has better performances, as shown below.

Enterprise Advantages

Our company recruits talented people broadly to form a high-quality and highly educated talent team. Our members have high professional level and rich industry experience.

Tianfei High-Tech is committed to providing customers with excellent, advanced and professional services. In this way can we improve their trust and satisfaction with our company.

Our company always insists on the business philosophy of 'credit first, integrity cooperation, mutual benefit and win-win', and we carry forward the enterprise spirit of 'pursuing excellence, willing to dedicate and advancing with the times'. Based on that, we provide quality products and services for consumers with professional team and efficient management.

Tianfei High-Tech was built in Based on the years of constant exploration, we have gradually grown into a modern enterprise with large scale and mature technology.

Our products are sold well at home and abroad.
